Note: Barco projectors are manufactured according to specific design standards, which also include environmental conditions. Failing to follow the terms and conditions outlined in this chapter can result in loss of product warranty.
The table below summarizes the physical environment in which the projector may be safely operated or stored.
Environment
Ambient operating temperature
Relative humidity
Storage Conditions
0 — 500 M
10 to 45 °C
10 to 65%
-20 to 60 °C, 10 – 90 %
0 – 500 M
10 to 40 °C
10 to 80%
-20 to 60 °C, 10 – 90 %
500 – 1500 M
10 to 40 °C
10 to 80%
-20 to 60 °C, 10 – 90 %
1500 – 3000 M
10 to 35 °C
10 to 80 %
-20 to 60 °C, 10 – 90 %

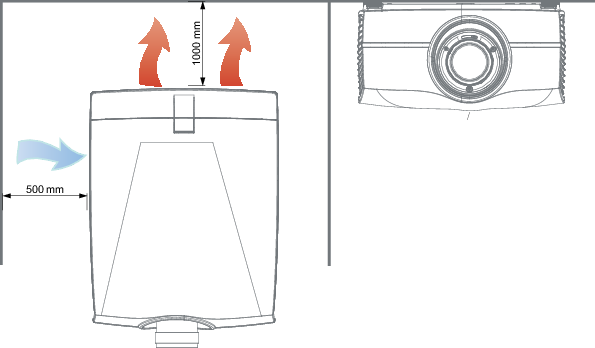

Maximum air flow
900 m3 / hour
-
NA
Note: For PRC (People’s Republic of China) the certified altitude is specified on the product label.
AutoDim function
The F90 AutoDim function is integrated in the projector firmware. The projector continually senses and calculates the ambient temperature in the installation location and will, when necessary, automatically dim the light output if the projector is operating in the extreme ends of the recommended ambient environmental conditions, as illustrated in the graph below.
Image 6–1
Mains power requirements
Projector
Power requirements
F90
100 — 240 V, 50 — 60 Hz
To protect operating personnel, the National Electrical Manufacturers Association (NEMA) recommends that the instrument panel and cabinet be grounded.
In no event shall this projector be operated without an adequate cabinet ground connection.
The AC supply must be installed by a qualified electrician in conformance to local codes. Hardware, wire sizes and conduit types must comply with local codes.
