2.1 Main components

Naming conventions

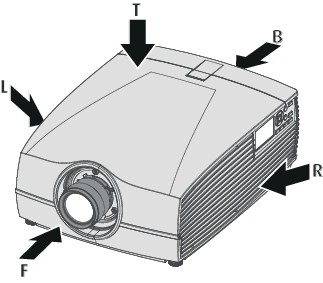

Image 2–1
L
Left
T
Top
B
Back
R
Right
F
Front
Projector Front

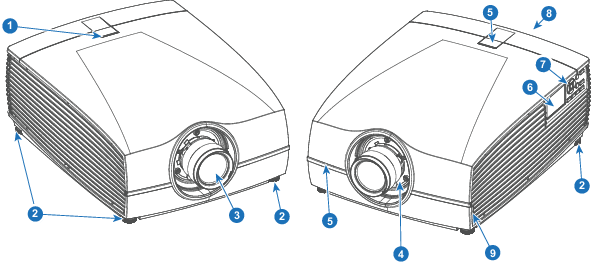

Image 2–2
1
LED status light
2
Adjustable feet
3
Projector lens
4
Lens holder
5
IR Receiver: for remote control communication
6
LCD panel
7
Keypad
8
Connector panel
9
Front USB and triggerboard
