3.2 VESA mount installation

Overview

The display supports mounting arm & stands according to the VESA 400 mm standard.

Caution: Use an arm that is in compliance with VESA requirements.
Caution: The monitor VESA interface has been designed for a safety factor 6 (to support 6 times the monitor weight). In the medical system, use an arm with suitable safety factor (IEC60601-1).
Caution: The IP21 protection level (for version with protective glass) requires the all the VESA mount holes (on the back side of the display) are closed by the 16 screws (M6) and the 16 o-rings provided in the installation KIT
Caution: The arm or stand is not provided. The product stability must be verified in the specific usage (according to IEC 60601-1 Clause 9.4.2.2)
To mount the display to an arm stand

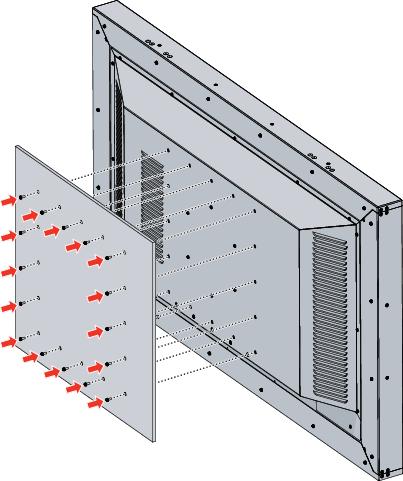

  1. Attach the mounting arm or the stand firmly to the display using minimum 6 screws (M6) pointed out by the red arrows in the image below. The screws can be inserted maximum 11 mm and minimum 8 mm.

    Image 3–1
