About inputs

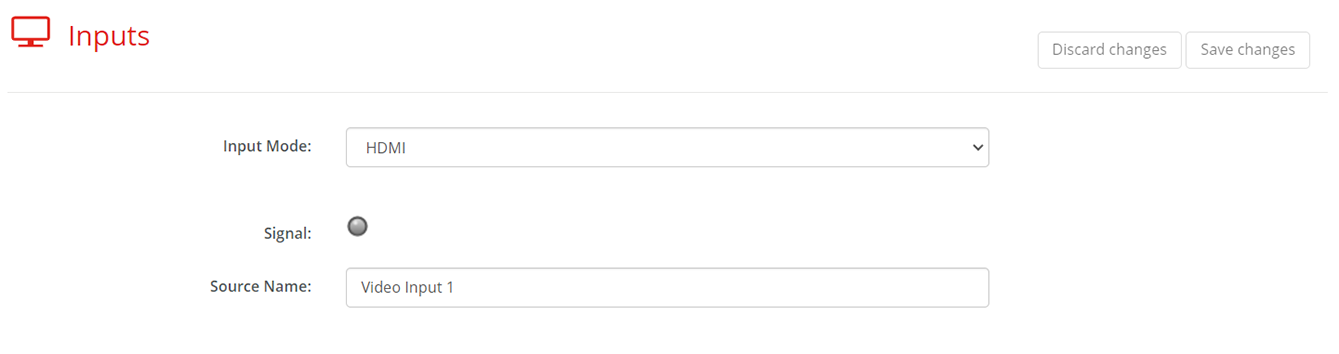

It is possible to attach the meeting room display to a computer with a wired connection via the ClickShare system. Select the connection method from the drop-down list after “Input Mode”:

• HDMI, the display will be connected to the computer.
• Off, disables the input functionality.

ClickShare will show if an active connection is present with the icon after “Signal”.

How ClickShare gets identified on the connected computer can be changed by typing a desired name in the input box after “Source Name”.

Note: Click the “Save changes” push button, to commit the modifications to the Base Unit.
