About the mounting base

A mounting base is included with the Base Unit. This mounting base can be installed in one of the following methods:

• Using the adhesive on the mounting base. For more information, see “Mounting the Base Unit using the mounting base”
• Using screws. For more information, see the following procedure.

About install locations

The Base Unit can be installed using the mounting base to the following options:

Tip: The Base Unit weighs: 900g.

• The table
• The wall
• The ceiling

How to secure

1. Drill two holes 50mm horizontally spaced into the wall.

2. Insert a plug into each hole. (optional)



   Note: Mounting screws and plugs are not included with the Base Unit. The type of screws and plugs depend on the wall material i.e. stone, wood, plasterboard, ...

3. Tighten two screws through the mounting base into the prepared holes.

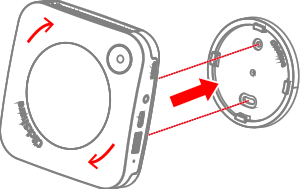

4. Position the Base Unit over the mounting base and twist it clockwise, as illustrated.
