5.3.2 Display connections

HDMI connection

  1. Connect an “HDMI” cable from the “HDMI out” port of the Base Unit to the “HDMI in” port of the display. (reference 1)

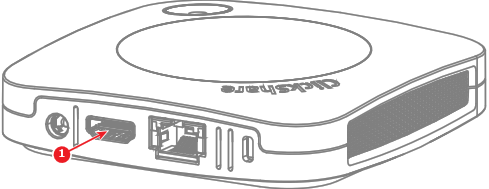

    Image 5–6 Location of the HDMI connector
    1
    Connection for the HDMI cable

  2. Is the display a touch screen?

    Note: Only for C-10.
    • Yes, connect a “USB-A” cable to the “USB-A” ports of the Base Unit. (reference 2)
    • No, the HDMI connection has been made.

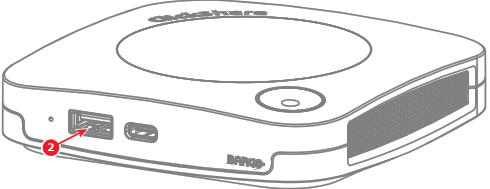

    Image 5–7 Location of the USB connector for touch screens
    2
    Connection for the touch screen USB-A cable
