2.2 Pairing the Button(s)

About the pairing

Button(s) must be paired with a Base Unit before they will work. An unpaired Button will not be able to share content nor connect to ClickShare.

Tip: It is not possible to pair a Button with multiple Base Units.

Pairing a Button to a different Base Unit will overwrite the link to the previous Base Unit.

How to pair
  1. Ensure the Base Unit is powered on.

  2. Connect the Button to the “USB-C” port of the Base Unit.

    Note: The CX-20 Gen2 is only compatible with 4th gen Buttons. For more information about the Button, see “The ClickShare Button”.

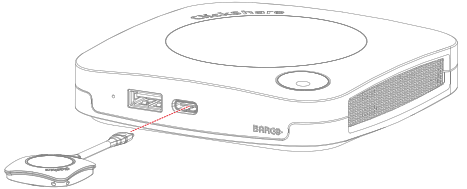

    Image 2–2 Method to pair a Button

    If a display is attached a notice “Busy pairing and updating” will appear at the bottom of the splash screen.

  3. Wait until the circle of the Button turns solid green

    If a display is attached a notice “Finished pairing and updating Button.” will appear at the bottom of the screen.

  4. Unplug the Button from the Base Unit.

    The Button is now ready to be used!
