10.3.3 Saturation

About (color) saturation

The saturation function is used to adjust the color saturation levels.

Saturation adjustment can be done with the Saturation key on the RCU or via the menu structure.

How to adjust

  1. Press Menu to activate the menus and select Image → Image Settings → Saturation.

    Image 10–11 Main menu, Image
    Image 10–12 Image adjustments

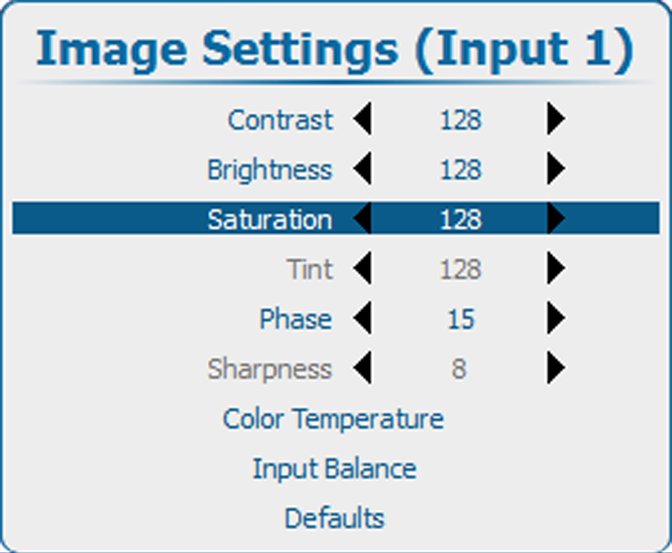

    Image 10–13 Image settings, saturation

  2. Press ENTER to select.

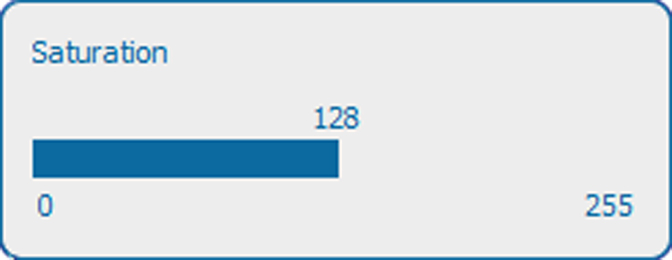

    Image 10–14 Saturation adjustment

  3. To change the value directly in the Image Settings window, use the ◄ or ► key or a numeric key 0-9, to adjust as a % of the full range.

    To adjust via the bar scale menu, press ENTER to display the Saturation menu and adjust with the ◄ or ► key. Press ENTER again to enter the value directly with the numeric keys. Press EXIT to return to Image Settings menu.
