14.5.4 Wired subnet mask set up

Note: Subnet for Wired and Wifi must be different !
How to set up

  1. Press Menu to activate the menus and select Projector Control → Network.

    Image 14–22 Main menu, projector control

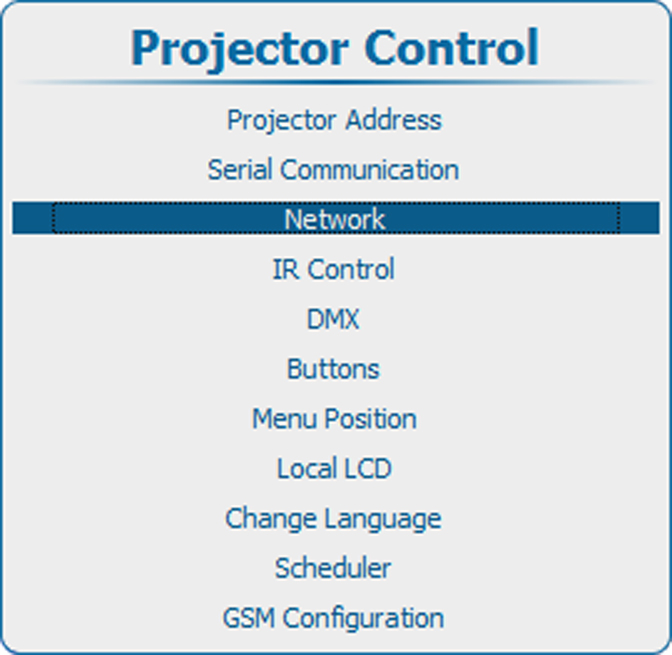

    Image 14–23 Projector control, network

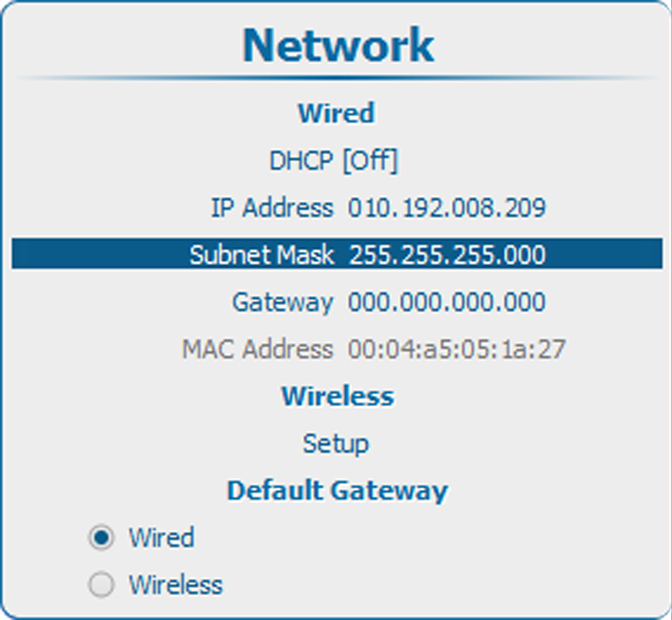

    Image 14–24 Subnet mask

  2. Use the ▲ or ▼ key to select Subnet Mask under Wired and press ENTER to activate the input box.

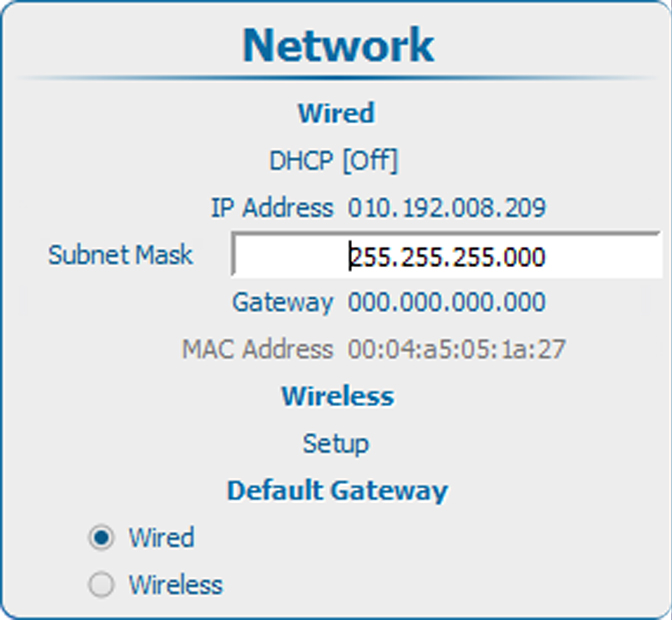

    Image 14–25 Fill subnet mask

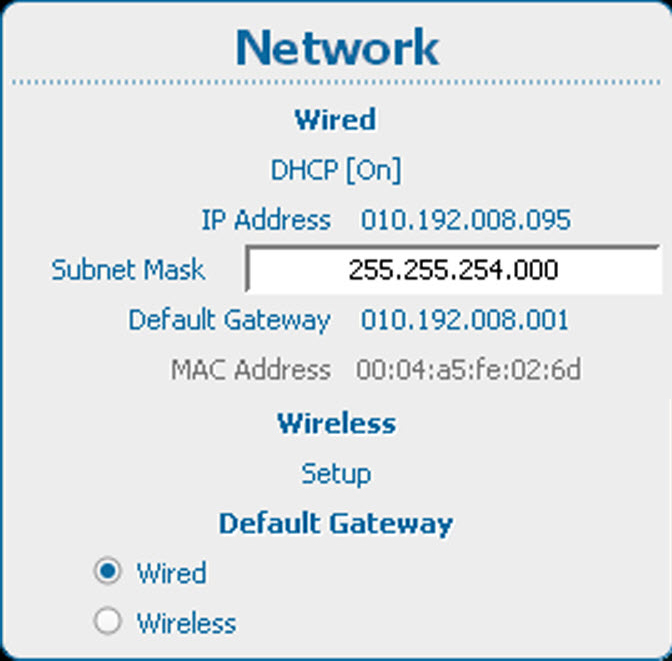

    Image 14–26 Fill subnet mask

  3. Use the ▲ or ▼ key to change the selected character.

    Use the ◄ or ► key to select another character.

    Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
