HDX series - Utility-Accessory Outlet - User and Installation manual (HTML)

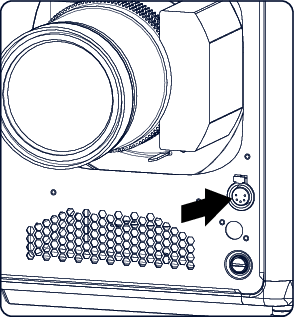

An extra DMX controlled accessory can be added to projector.

Some examples of the use of this connector:

Connect external accessories like the Catalyst Mirrorhead (Even if this example still needs a extra Power supply
Connect other DMX enabled devices like, color changers, shutters, dimmer wheels
Connect a DMX Lens option
Connect a DMX rigging frame level device
Use for external relay

1	GND
2	DMX Data –
3	DMX Data +
4	Power 9 - 24 Volt DC With Setting in menu 9 / 12 / 24 @ 25W Note : do not overload ! Maximum 1A on 24V is allowed.

The connector is a duplicated output of the DMX signal entering the projector over the 5 Pin XLR

5.4 Utility-Accessory Outlet
