17.2 Removal of the lamp house

Warning: Switch off the projector and unplug the power cord before starting the procedure.
Warning: The Lamp House is very hot after operation. Let the projector cool down for at least 15 minutes before proceeding to the next step. Failure to do so can cause serious injury.
Required tools

Flat screwdriver

How to remove
  1. Remove the lamp cover on the input side, see “Removal of the lamp cover”.

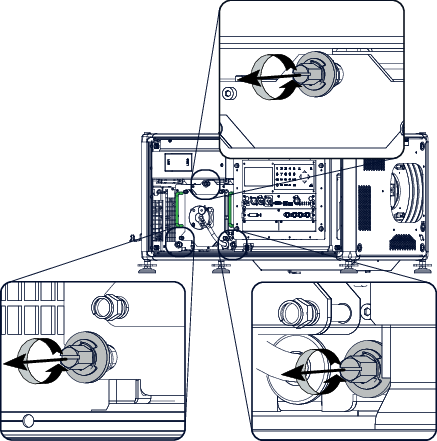

  2. Release the 3 spring lock screws.

    Image 17–3 Lamp house, captive screws

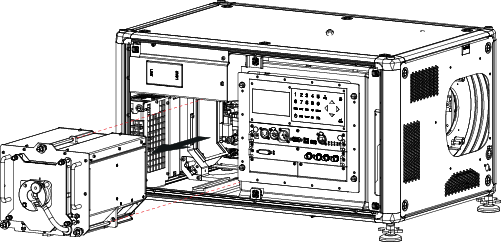

  3. Take the lamp house by both handles and pull it out.

    Image 17–4 Lamp house, removal
