About input types

• Frame sequential - Single channel : One input contains 3D information, alternating the left and the right information.
• Frame sequential - Dual channel : Two inputs, one contains the left eye information and the other contains the right eye information
• Frame packing (FHD 3D) : One input contains 3D information, packed in one frame.
• Side-by-Side (Half) : One input contains 3D information with half of the resolution.
• Top-and-Bottom (Half): One input contains 3D information with half of the resolution.
• SENSIO^® 3D Decoder - FFC: HDMI/DisplayPort (only on 3D input module).
• Line Alternating (3G-B): SDI only

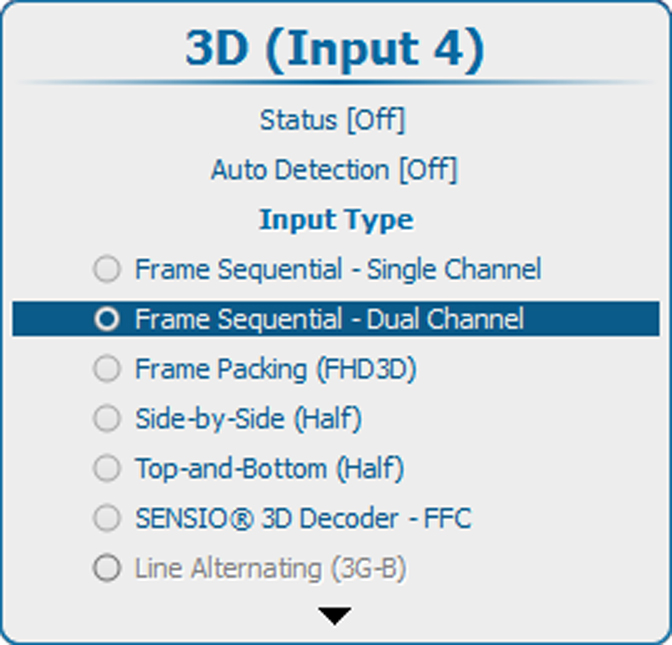

How to select

1. Press Menu to activate the menus and select Input → 3D





2. Press ENTER to open the 3D menu

3. Use the ▲ or ▼ key to select the desired input type.



4. Press ENTER to activate.
