General

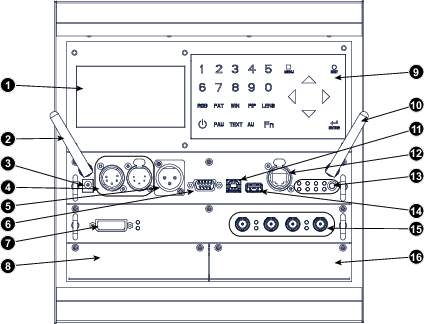

The Input & Communication side of the projector consists of a button module, a dual 3G/HDSDI and DVI-I input as standard input module and 2 free input slots. The free input slots can be used for optional modules (e.g. 5-cable input).
| 1 | Display |
| 2 | Optional antenna for Wifi connection |
| 3 | 12 V output as power supply to external equipment |
| 4 | DMX in - out |
| 5 | XLR input port for remote control |
| 6 | RS232/RS422 input port |
| 7 | Dual Link DVI-I HDCP input |
| 8 | Free input slot |
| 9 | Button module |
| 10 | Optional antenna for GSM |
| 11 | RS232/RS422 input port |
| 12 | Ethernet port |
| 13 | Status and indication LEDs |
| 14 | USB port |
| 15 | 3G/Dual/HDSDI input - output |
| 16 | Free input slot |
