4.1.4 Lens removal

How to remove

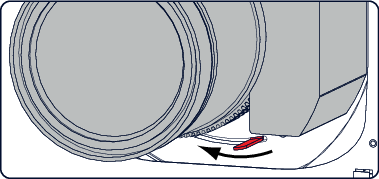

  1. Support the lens with one hand while you unlock the lens holder by sliding the lock handle towards the “unlocked” position as illustrated.

    Image 4–14 Lens removal, unlock

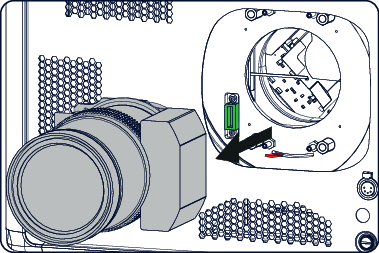

  2. Gently pull the lens out of the lens holder.

    Image 4–15 Lens removal
Tip: It's recommended to place the lens caps of the original lens packaging back on both sides of the removed lens to protect the optics of the lens.
Tip: It's recommended to place the plastic lens holder cover of the original projector packaging, back into the Lens opening to prevent intrusion of dust.
