4.2 Connecting the projector with the power net

Caution: Use only the power cord supplied with your device. When no power cord for your region/country is provided, contact your dealer. The power cord must be suited for the electrical ratings indicated on the product ID label. Only power cords according to the local electrical code regulations can be used.
How to connect with local power net

  1. Ensure that the power switch stands in the '0' (OFF) position (1).

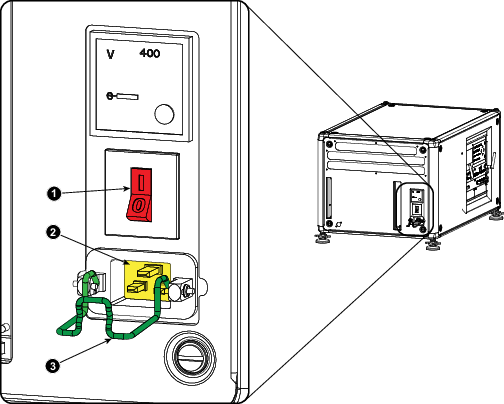

    Image 4–33 Power input
  2. Connect the female side of the power cord with the power input socket of the projector (2).
  3. Secure the power plug by locking the plug holder clamp (3).

  4. Connect the male side of the power cord to the local power net.

    Caution: Ensure that the power net meets the power requirements of the projector.
Warning: Do not attempt operation if the AC supply and cord are not within the specified voltage and power range.
Caution: Once the projector is switched to standby, the lamp cooling fans will continue to run for approximately five minutes to ensure that the projector and lamp have sufficiently cooled, at which point the fans will automatically decrease to standby. To avoid thermal stress that can lead to premature lamp failure, never unplug the power cord while the lamp cooling fans are running. Never unplug the power cord to power down the projector, first switch off the power switch and then unplug the power cord.
Fuses

The projector is protected with an automatic circuit breaker of 20 A which is built into the power switch.

The voltage meter is protected with a fuse (1A) which is located on the neutral bonding cable. If necessary to replace this fuse, consult a service technician.
