13.8.16 Warp file service, load file

What can be done?

A predefined warp configuration can be loaded in the warp board as active warp configuration file.

Tip: To exclude the warp functionality, load the file NoDistortion.txt.
How to load

  1. Press Menu to activate the menus and select Alignment → Warping → .Warp File Service → .Load.

    Image 13–61 Main menu, alignment
    Image 13–62 Alignment, Warping

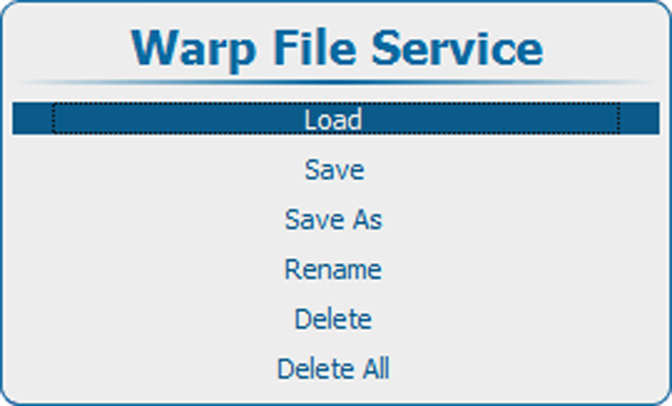

    Image 13–63 Warping, file service
    Image 13–64 File service, load

  2. Press ENTER to display the overview list with warp files.

    Image 13–65 Warp files
  3. Use the ▲ or ▼ key to select the desired file.
