11.4.5 PiP window, position

What can be done?

The picture in picture window can be positioned on any place on the display just by changing its start coordinates. The reference is the upper left corner of the window.

How to position

  1. Press Menu to activate the menus and select Layout → PiP window → Position.

    Image 11–33 Main menu, layout

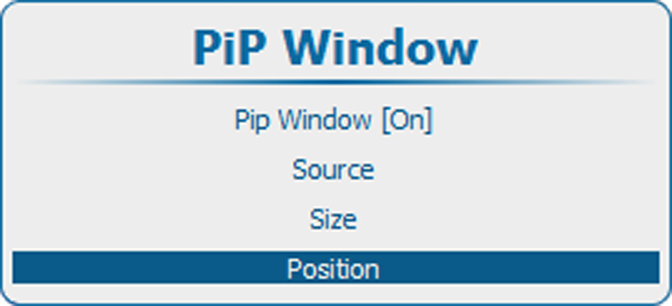

    Image 11–34 Layout, PiP window
    Image 11–35 PiP window, position

  2. Press ENTER to select.

    The Position window opens.

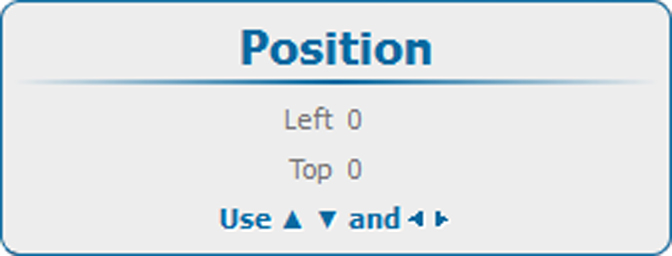

    Image 11–36 Position window
  3. Use the ▲ or ▼ key to change the Top position and the ◄ or ► key to change the Left position.

  4. When desired position is reached, press EXIT.

    A Save Layout window opens.

    Image 11–37 Save layout

  5. Use the ▲ or ▼ key to select Yes and press ENTER to save.

    Select No if you want to quit without saving the current position.
