10.7 EC-200/EC-210 backside overview
Overview

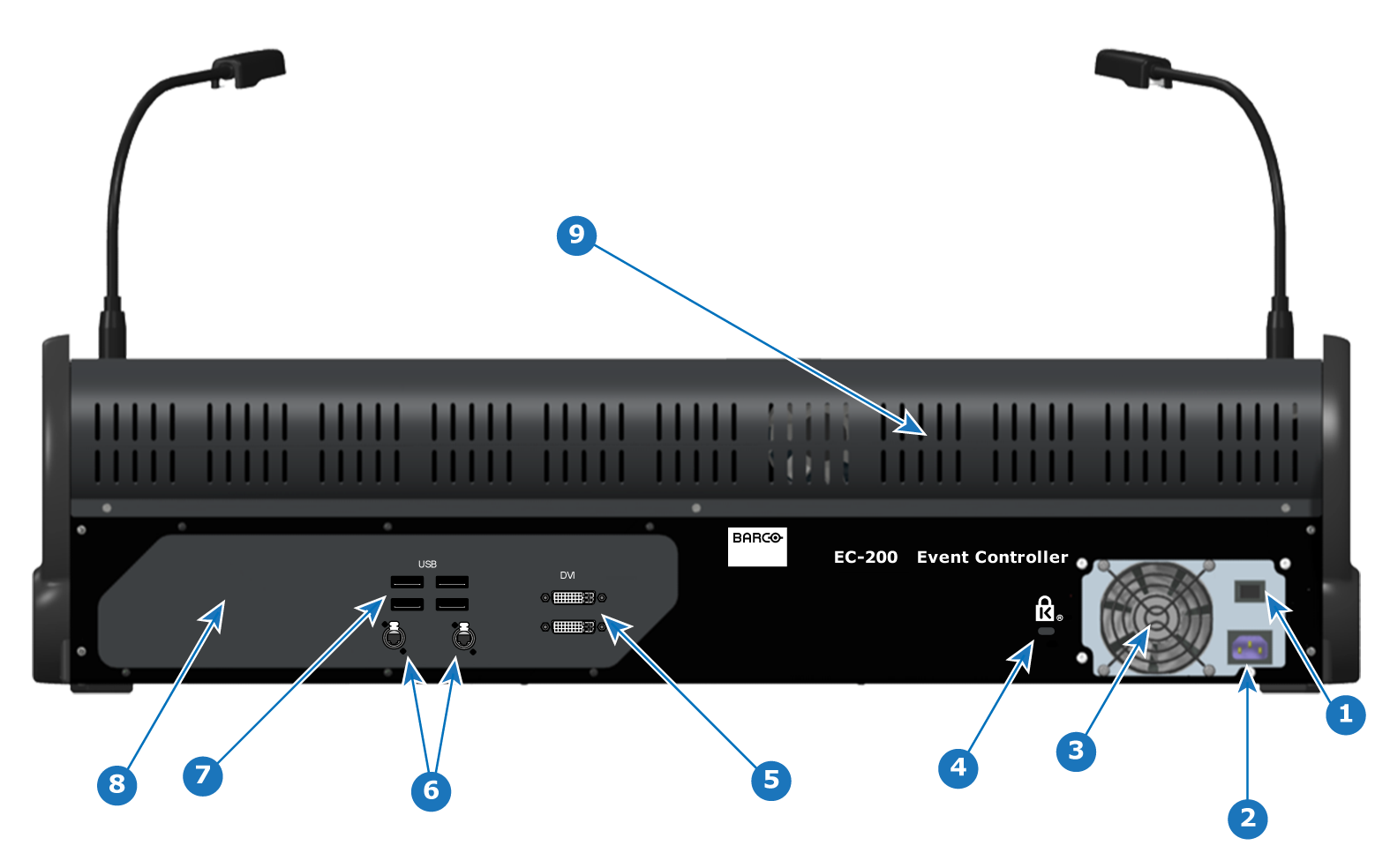

Image 10–7 EC-200 backside overview- 1
- Power switch
- 2
- Power receptacle
- 3
- PSU fan outlet, not to be blocked
- 4
- Kensington Lock attachment point
- 5
- 2x DVI Output connector for a standard HD DVI signal
- 6
- 2x Ethernet RJ45 network connectors
- 7
- 4x USB A connectors for USB peripherals, such as mouse and keyboard
- 8
- Rear I/O plate
- 9
- Red effects light (located behind rear vent holes)
EC-210 Overview

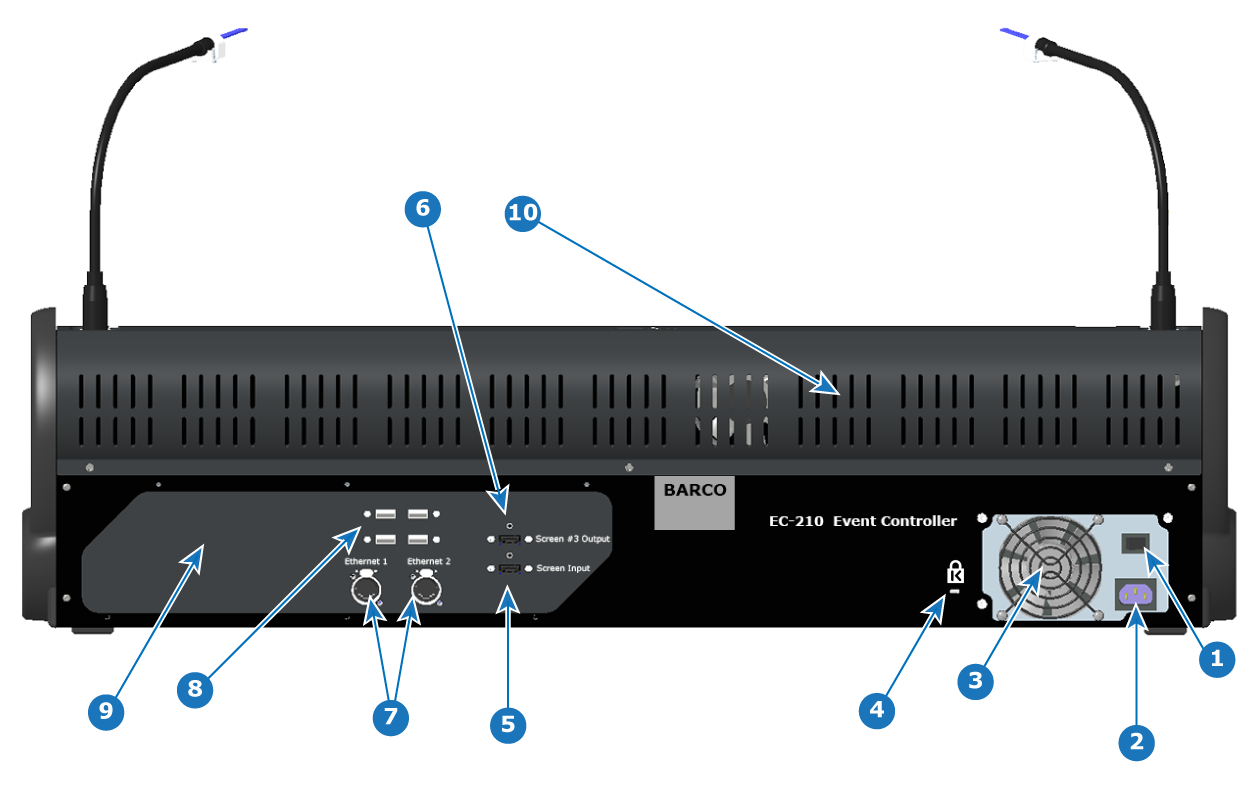

Image 10–8 EC-210 backside overview- 1
- Power switch
- 2
- Power receptacle
- 3
- PSU fan outlet, not to be blocked
- 4
- Kensington Lock attachment point
- 5
- HDMI input connector
- 6
- HDMI output connector
- 7
- 2x Ethernet RJ45 network connectors
- 8
- 4x USB A connectors for USB peripherals, such as mouse and keyboard
- 9
- Rear I/O plate
- 10
- Red effects light (located behind rear vent holes)
