14.14 Front Panel Board

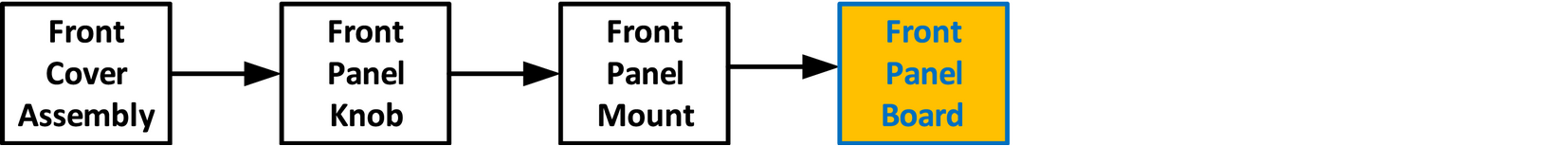

Flow chart
Image 14–39
Concerned parts
Front Panel Board
Necessary tools

1 x Phillips Screwdriver #2

How to remove the Front Panel Board

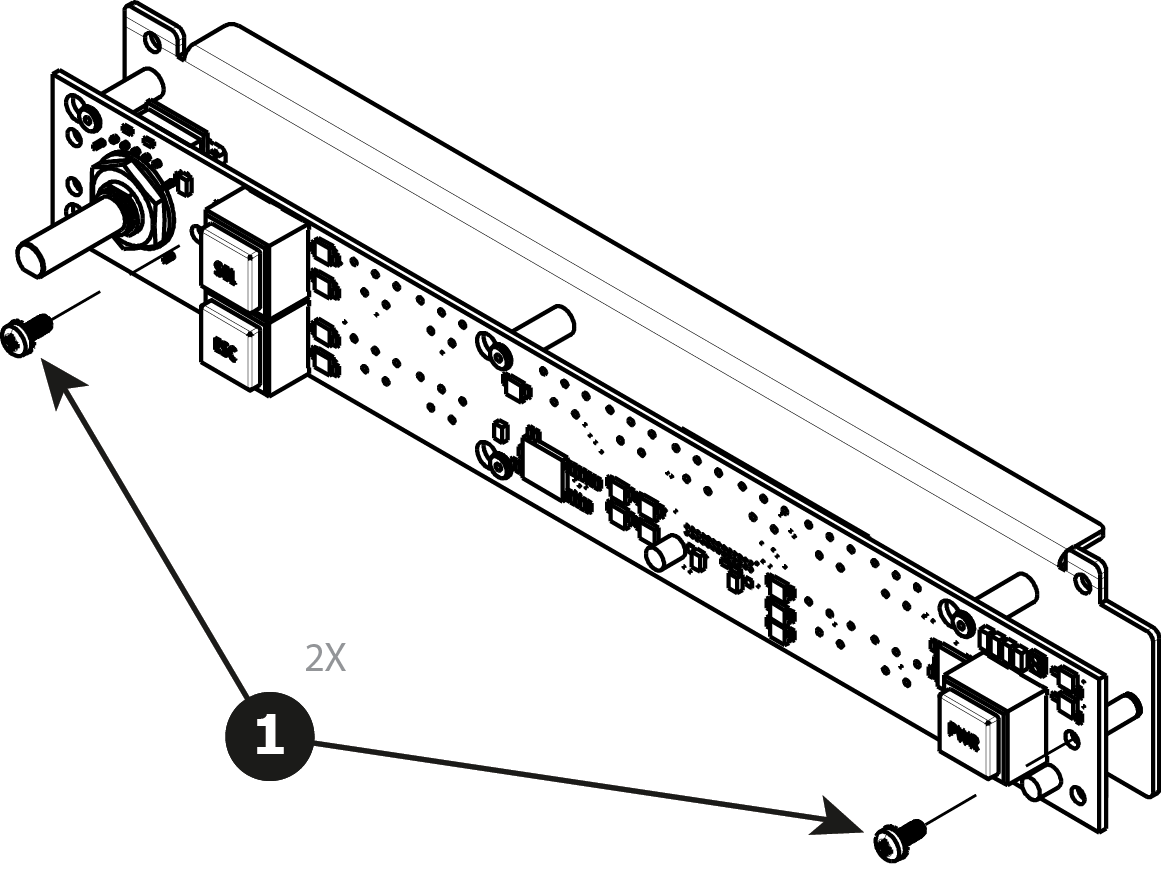

  1. Remove the two screws ( 4-40X.25) that secure the PCB to the front mount.

    Image 14–40

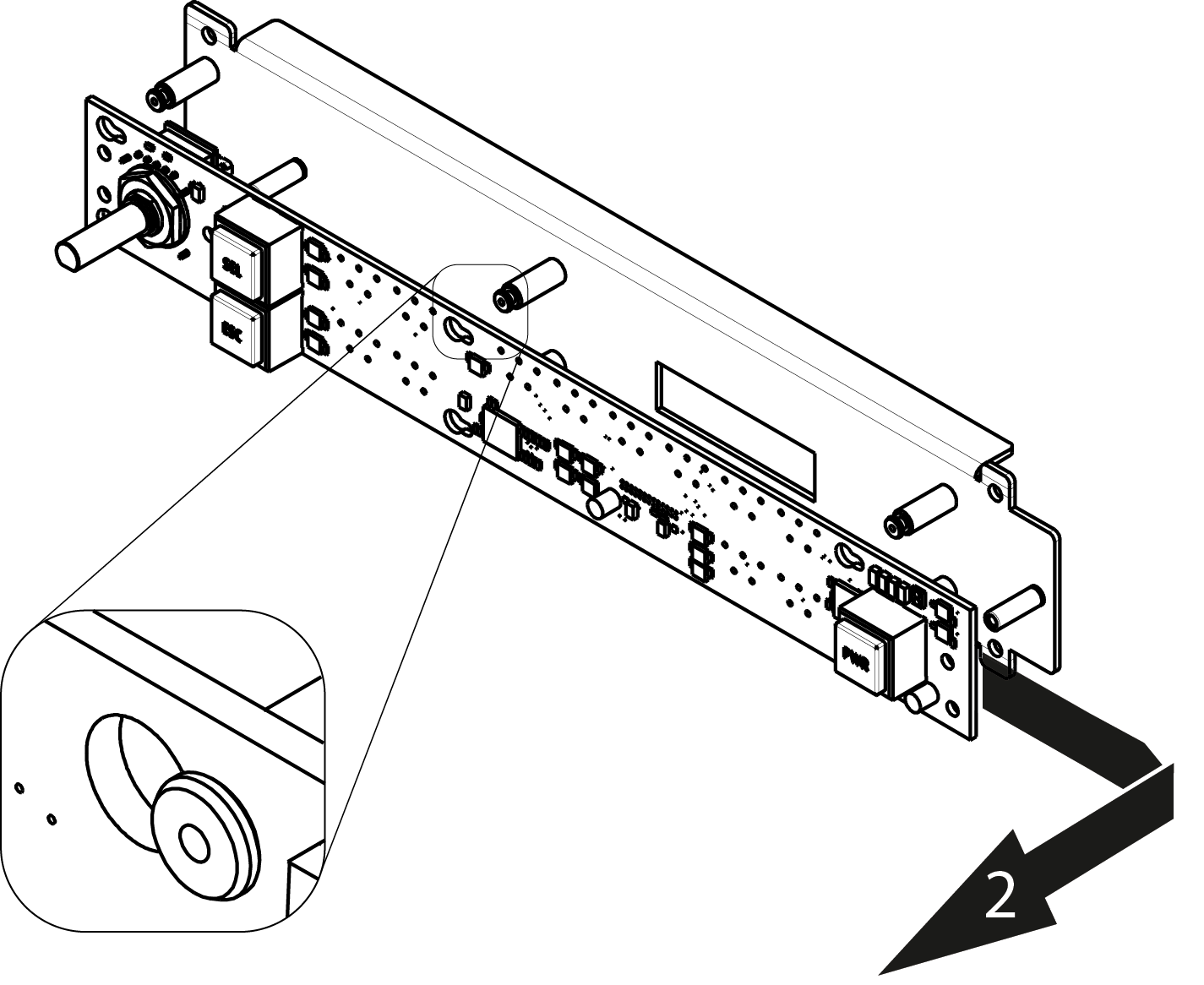

  2. Move the PCB to the right and then out to release it from the mount.

    Image 14–41
How to install the Front Panel Board

To install the Front Panel Board follow the same procedure in the reverse order.
