14.9 3RU Fan Tray

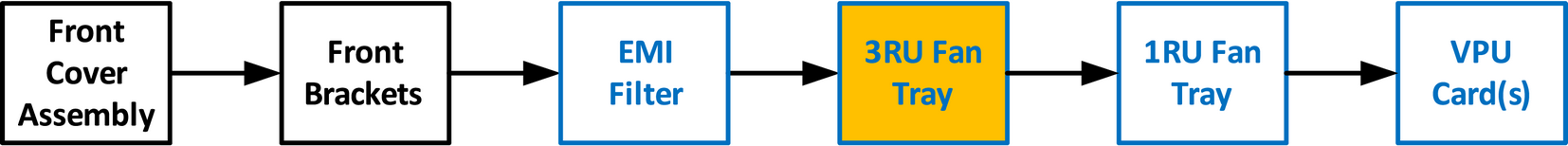

Flow chart
Image 14–24
Concerned parts
3RU Fan Tray
Necessary tools

1 x Phillips Screwdriver #2 (optional).

How to remove the 3RU Fan Tray

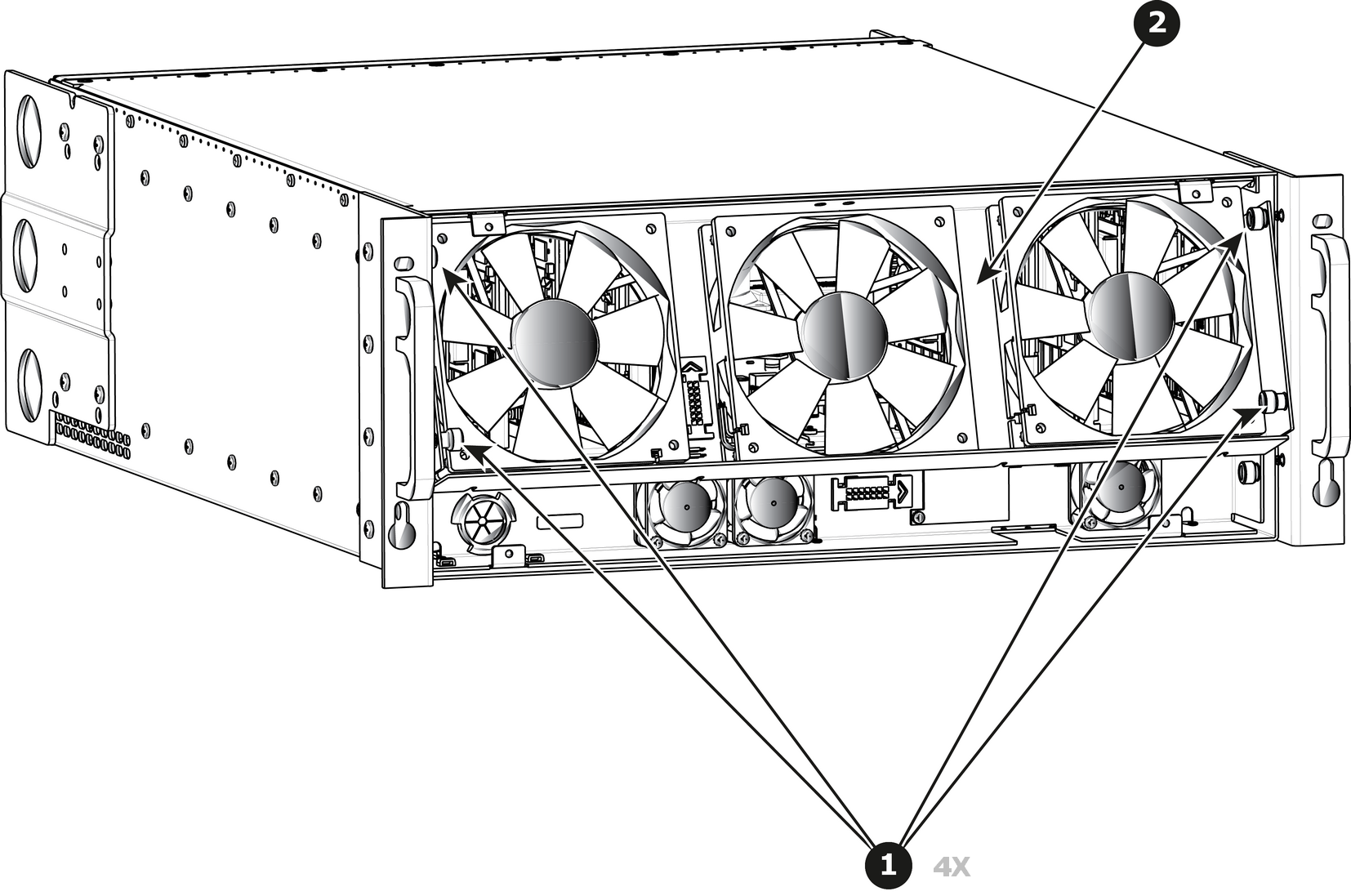

  1. Loosen and unscrew the 4 thumbscrews holding the 3RU fan tray to the chassis.

    Note: You may need a screwdriver if the thumbscrews are very tight.

  2. Pull the tray out.

    Note: You need to tilt the tray and maneuver it to go around the dimples located on the side of the chassis.
    Image 14–25
How to install the 3RU Fan Tray

Follow the same procedure in the reverse order and in addition perform the following:

  1. Ensure that the bottom slots at the bottom of the tray align with the pins located on the bracket in the chassis.
  2. Make sure that the connector located at the back of the tray is aligned to the connector located on the bracket behind it.
  3. Push so that the two connectors mate.
