15.14 VFD Display Filter

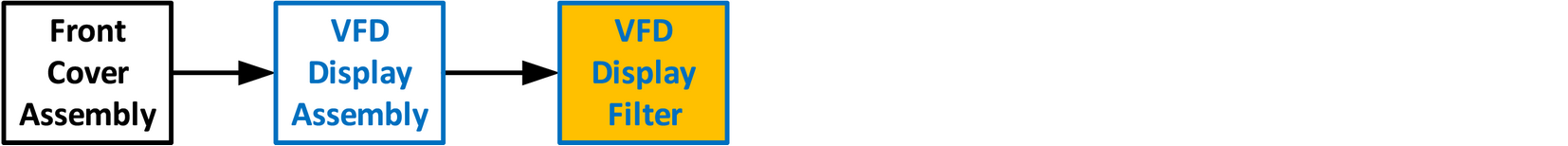

Flow chart
Image 15–29
Concerned parts
VFD Display Filter
Necessary tools

None.

How to remove the VFD Display Filter

  1. From the front of the unit push hard on the filter until it detaches from the unit.

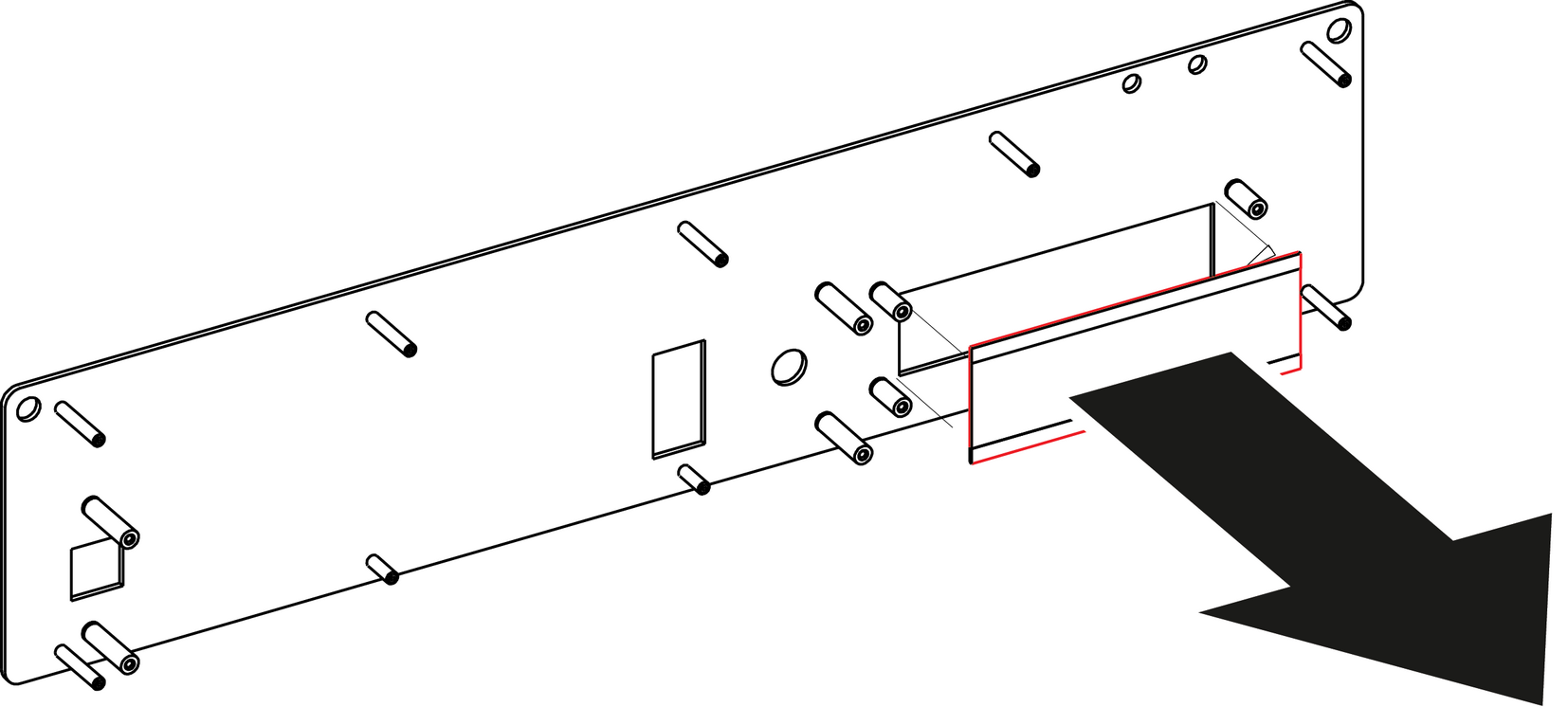

    Image 15–30
  2. Use alcohol to clean the adhesive residue that held the filter to the metal plate.
How to install the VFD Display Filter
  1. Remove the protective film from the front of the filter and release the liner from the tape.
  2. Press firmly the filter into the metal plate.
