15.27 Link Card Interposer

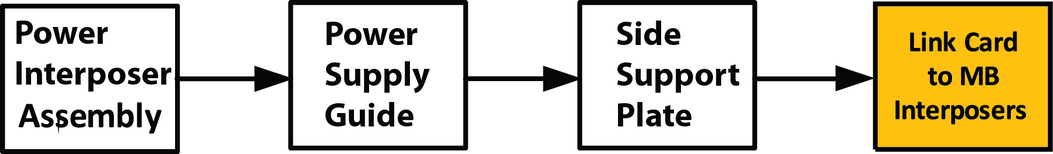

Flow chart
Image 15–67

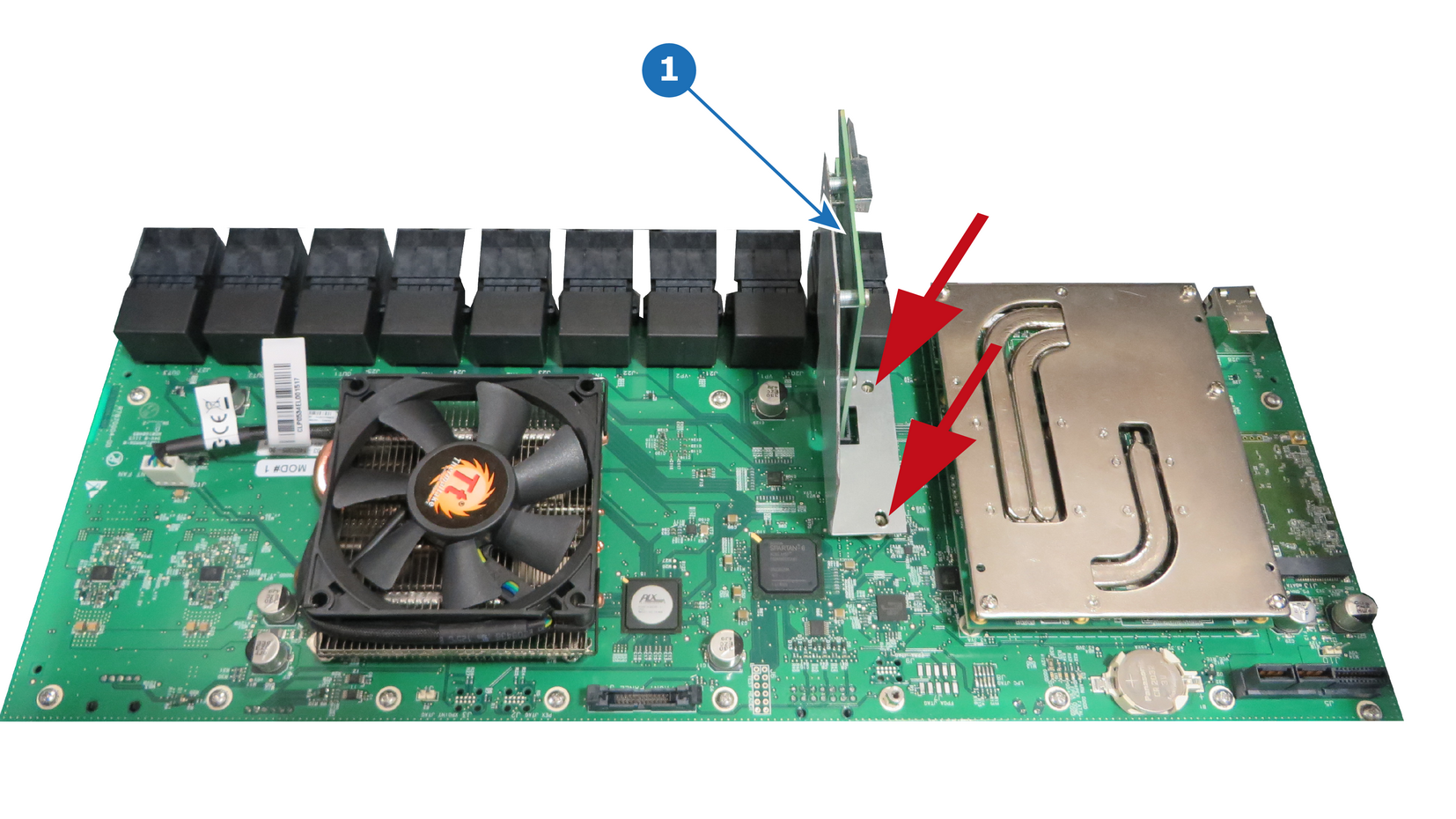

Overview
Image 15–68
1
Link Card Interposer
Necessary tools

none

How to remove Link Card Interposer

  1. Remove the Link Card Interposer from the unit.

    Note: The screws that fix the Link Card Interposer were already removed during the Side Support Plate removing stage.
How to install Link Card Interposer

  1. Install the Link Card Interposer into the unit.

    Note: The Link Card Interposer will be fixed during the Side Support Plate fixing stage.
