10.23 Rotary Encoders (EC-200/EC-210 only)

Overview

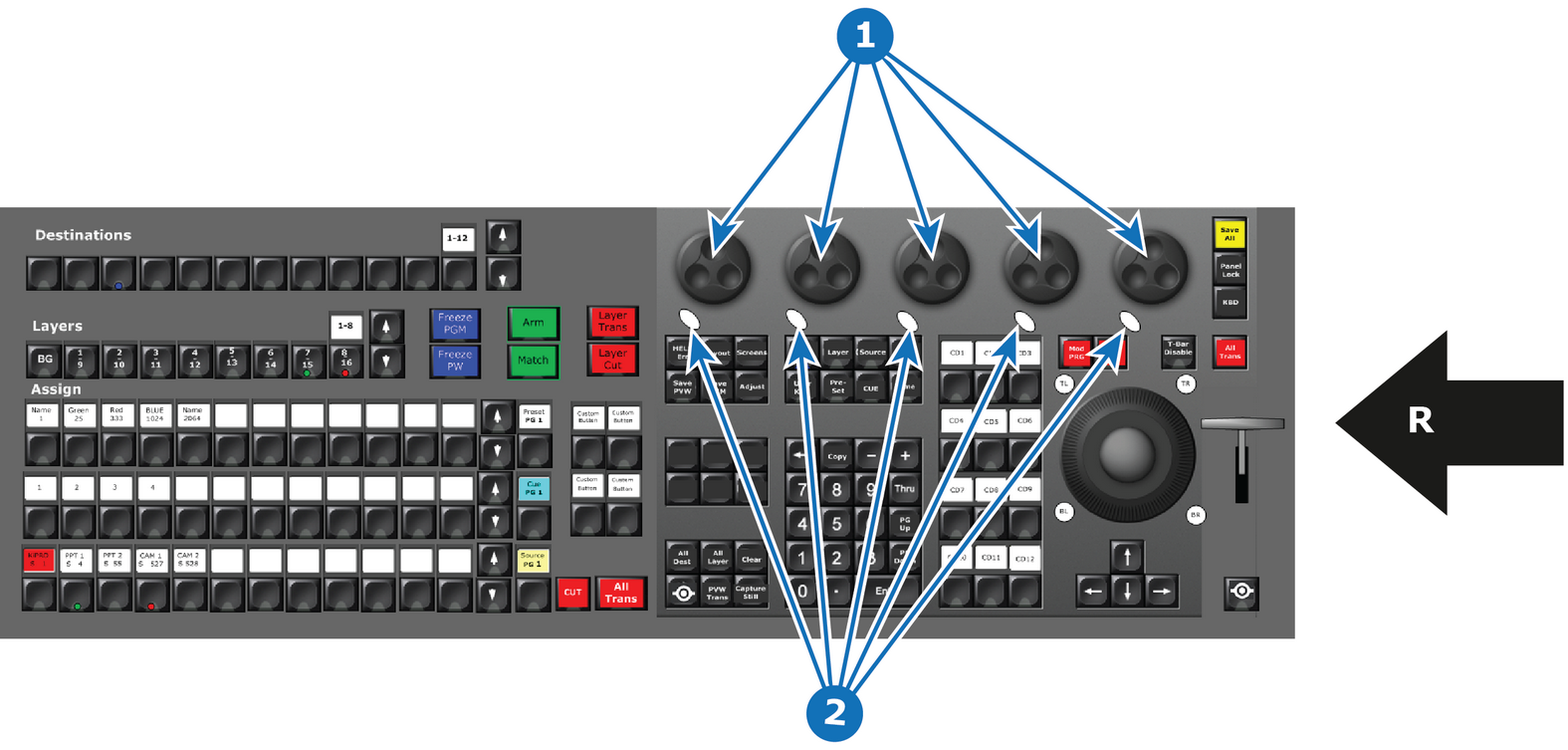

Image 10–32
1
Rotary encoders
2
Modifier buttons
R
Right Side of the Controller
Description

The five (5) rotary encoders to the top right are referred to as wheels or modifier wheels. Wheels are named from left to right WH1 – WH5. They have one modifier button each.

These encoders are present only on the large controller.
