10.20 Num Pad Button Group (EC-200/EC-210 only)

Overview

These buttons are present only on the large controllers (EC-200 and EC-210).

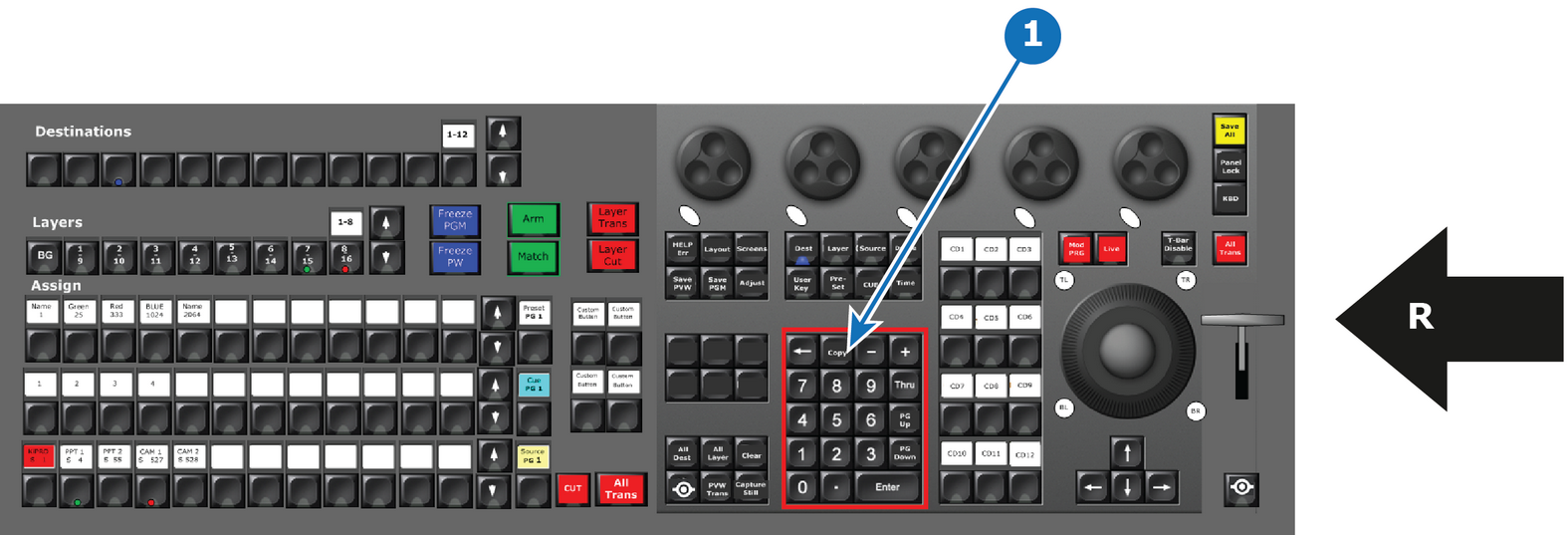

Image 10–27
1
Num Pad Button Group
R
Right Side of the Controller
Description
Image 10–28

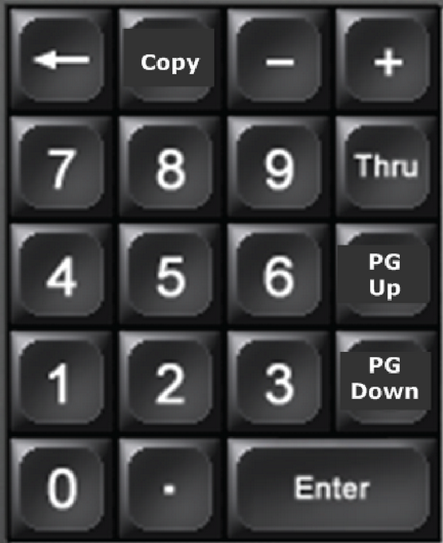

The almost standard layout numpad buttons resemble a standard numpad from a keyboard or other device.

With its specifically added, Copy, Thru, Pg Up, and Pg Down buttons, the numpad is essential for the Syntax Entry Programming introduced in EC-200.

The Numpad is used in conjunction with its own buttons or other buttons on the EC-200/EC-210. Its use is covered in “Controller Operation”.
