14.13 Front Panel Mount

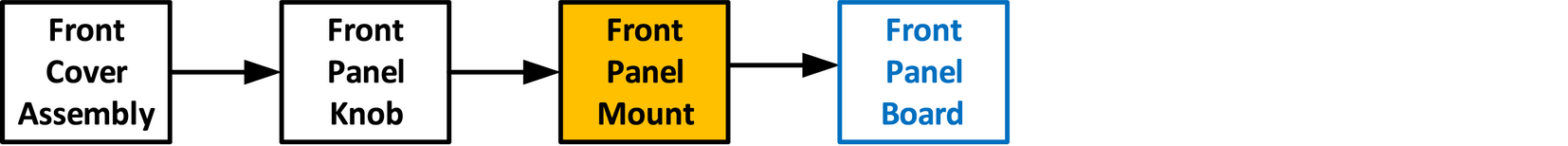

Flow chart

Image 14–37

Necessary tools

1 x Phillips Screwdriver #2

How to remove the Front Panel Mount

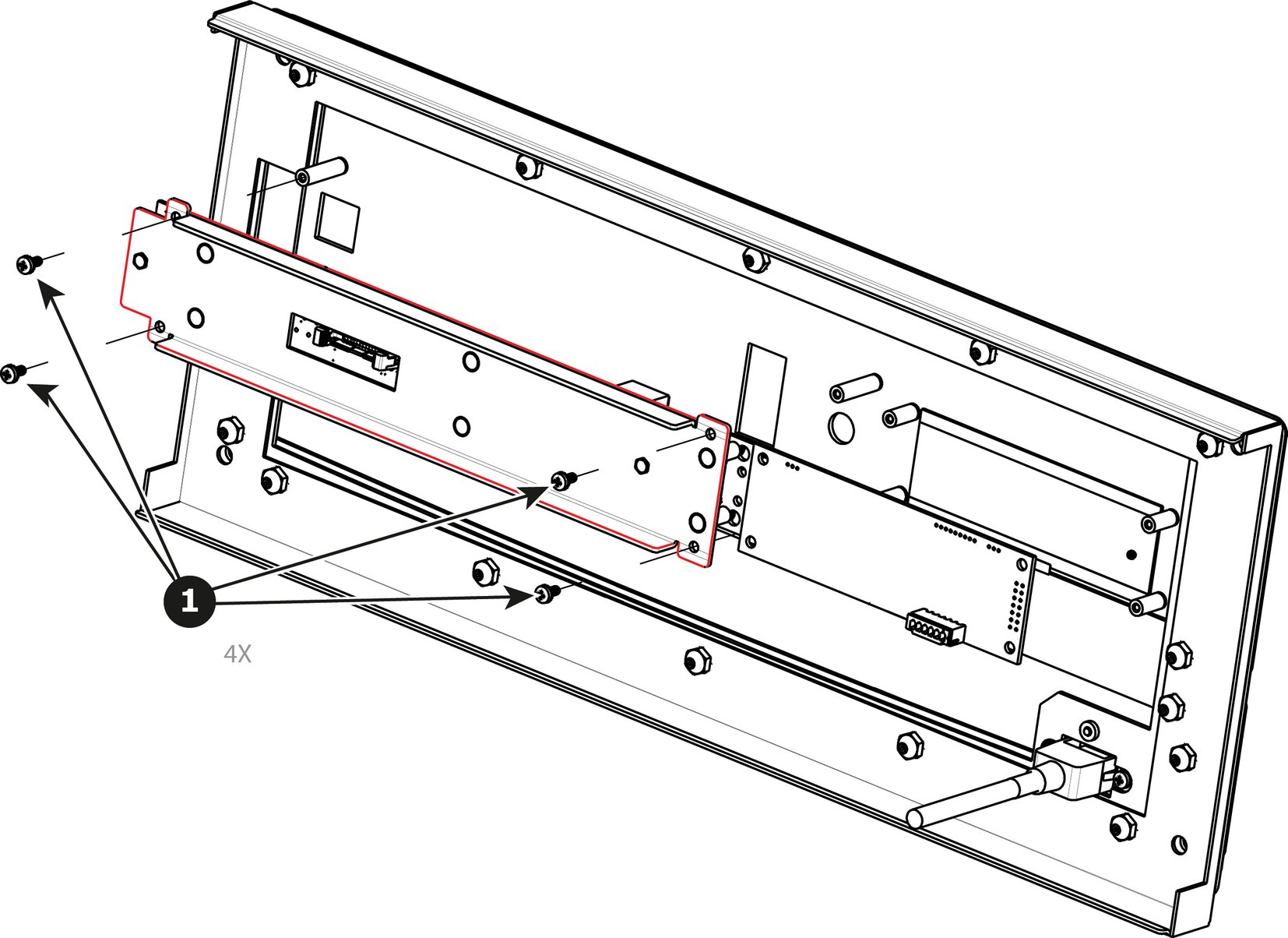

Turn the Front Cover over and remove the four screws (4-40X.25) that secure the control panel mount to the front panel.
Image 14–38

How to install the Front Panel Mount

To install the Front Panel Mount follow the same procedure in the reverse order.
