Orientation and main components
| T | Top | 5 | Chassis |
| F | Front | 6 | Motherboard Fan |
| 1 | Top Cover | 7 | Power Supply |
| 2 | Event Master Cards | 8 | CPU Module |
| 3 | Interposers | 9 | System Battery |
| 4 | Front Panel | 10 | Motherboard |

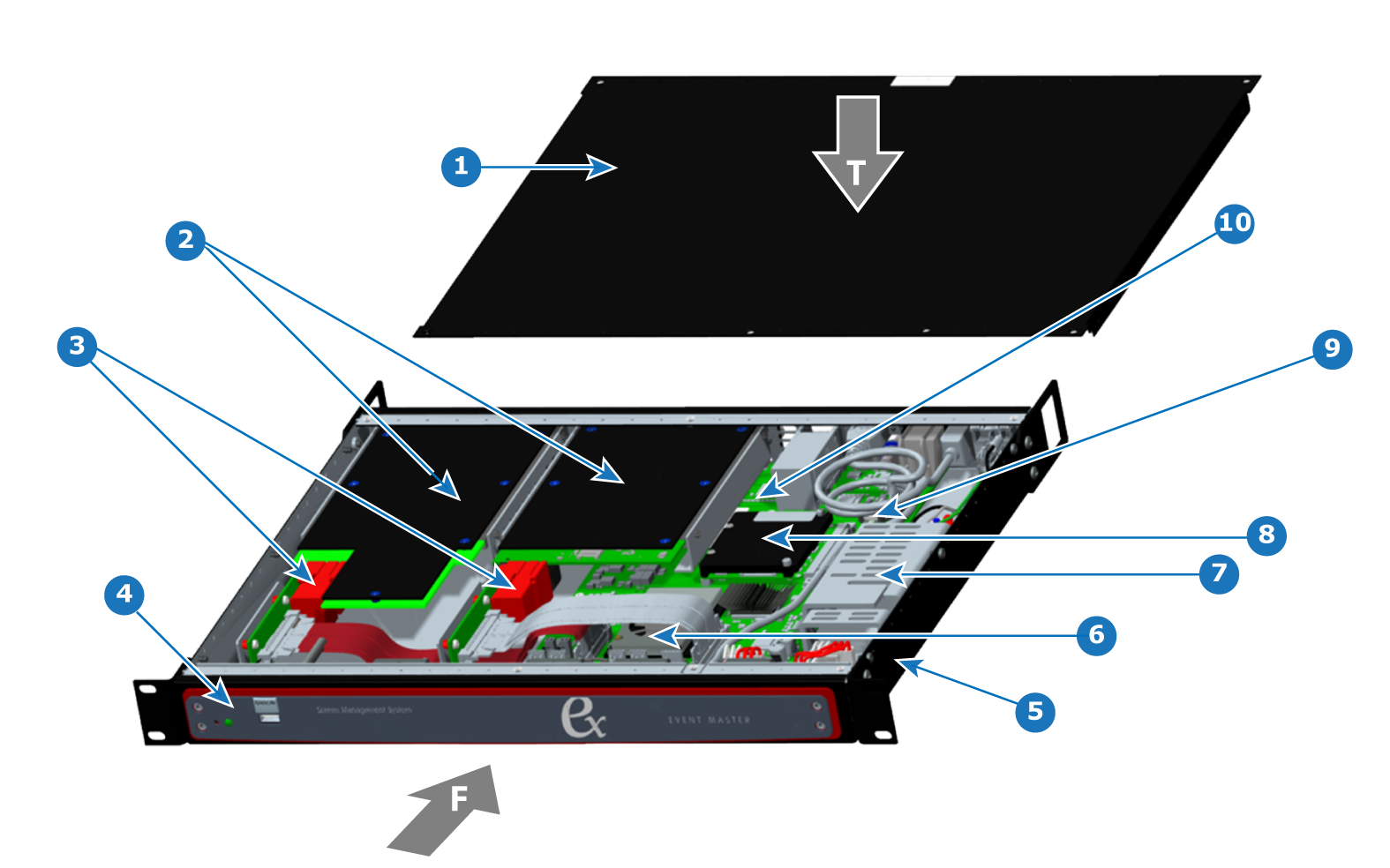

16.1 EX unit Overview
| T | Top | 5 | Chassis |
| F | Front | 6 | Motherboard Fan |
| 1 | Top Cover | 7 | Power Supply |
| 2 | Event Master Cards | 8 | CPU Module |
| 3 | Interposers | 9 | System Battery |
| 4 | Front Panel | 10 | Motherboard |
