10.15 Future Expansion Button Group (EC-200/EC-210 only)

Overview

This group of buttons is present only on the large controllers (EC-200 and EC-210).

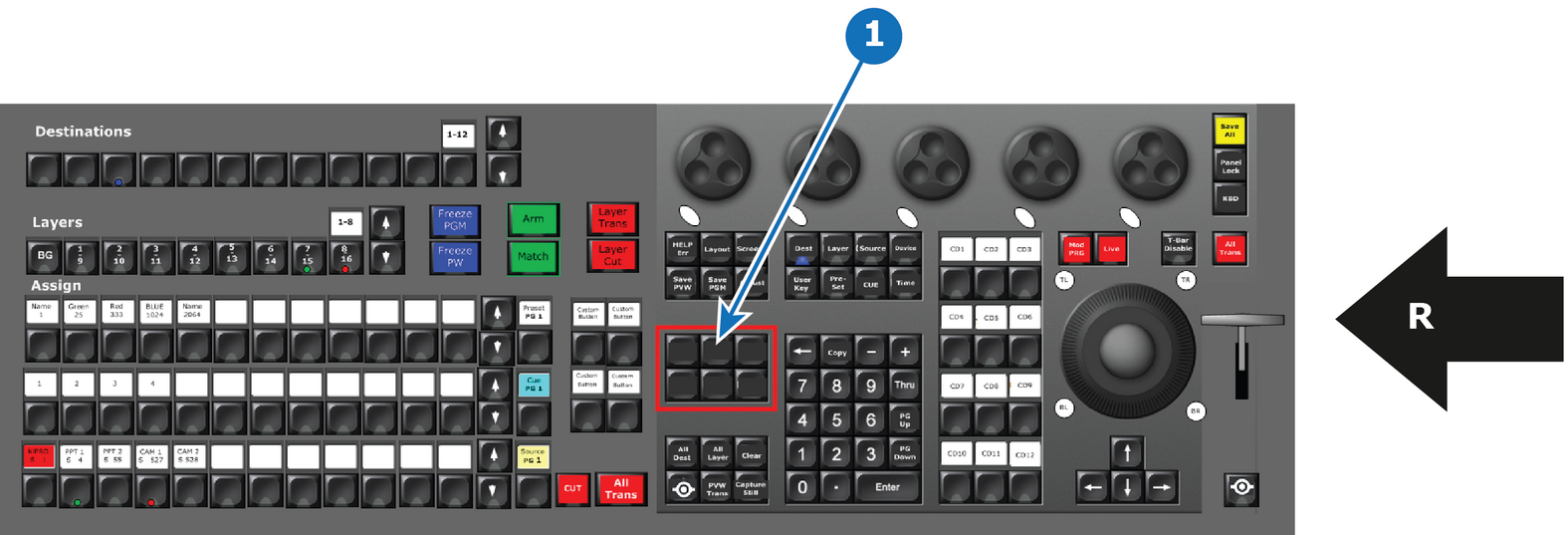

Image 10–17
1
Future Expansion Button Group
R
Right Side of the Controller
Description

This group of buttons holds a promise for future functions. On the EC-210, this group contains pre-labeled “Play/Pause” and “Stop” CUE buttons.

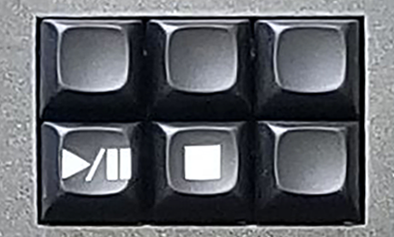

Image 10–18 “Play/Pause” and “Stop” CUE buttons

With the release of software version 6.2, Play/Pause and Stop button functionality has been added to the EC-200. To add the Play/Pause and Stop buttons to an EC-200, use the Key Cap Set EC-210 Upgrade Kit (P/N: 90405353).
