Overview
These buttons are present only on the large controllers (EC-200 and EC-210).

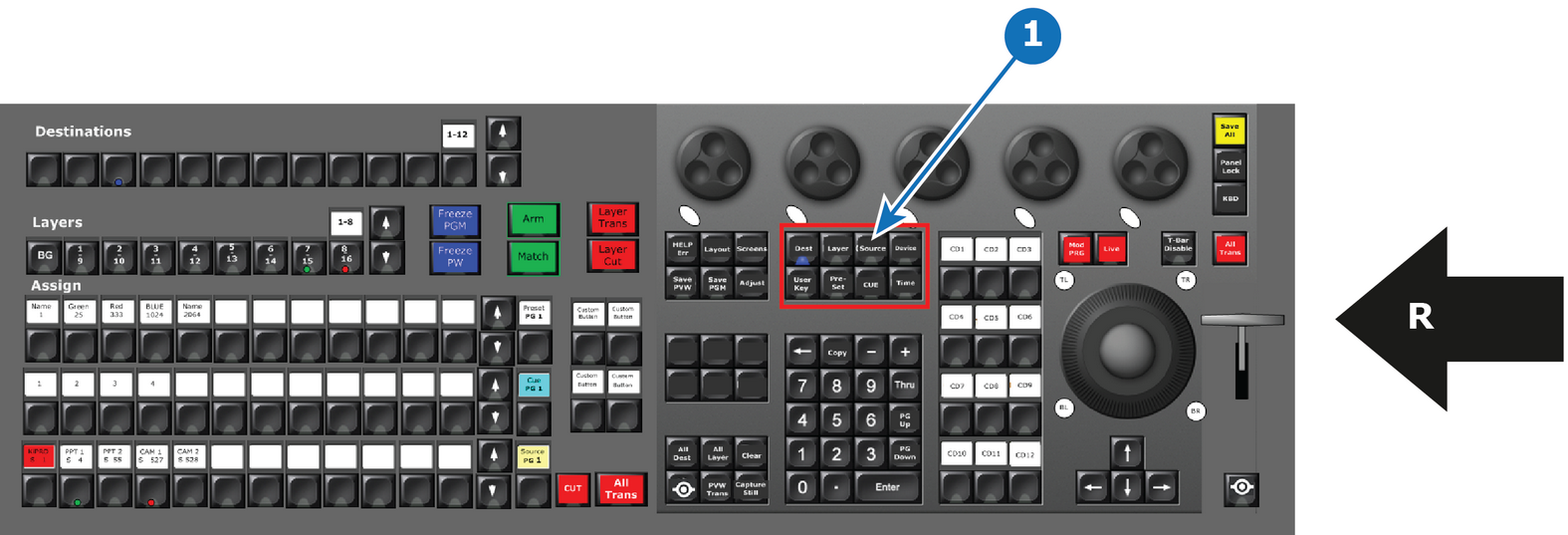

- 1
- Syntax entry Button Group
- R
- Right Side of the Controller

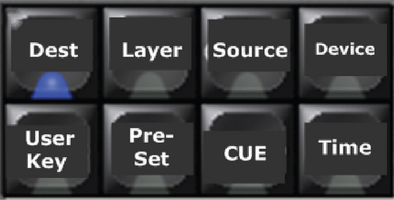

10.18 Syntax Entry Button Group (EC-200/EC-210 only)
Description
These buttons are used in the programming syntax introduced with EC-200. A programming syntax will be necessary in order to effectively program the Event Master System once its full size becomes available.
When each group of resources can be several hundred, direct select buttons seize to be effective. The syntax allow direct access with a few keystrokes.
Each button is further explained in the chapter “Controller Operation”,
