11.5 Touchscreen calibration

General

This feature depends on the controller type:

EC-50

The EC-50 requires a host computer. Calibration of the touchscreen could be necessary when your touchscreen responds imprecisely.

EC-200/EC-210

The EC-200/EC-210 has 2 integrated capacitive touchscreens that do not require calibration. If they don’t behave properly there can be dirt between the surface of the screen and the cover.

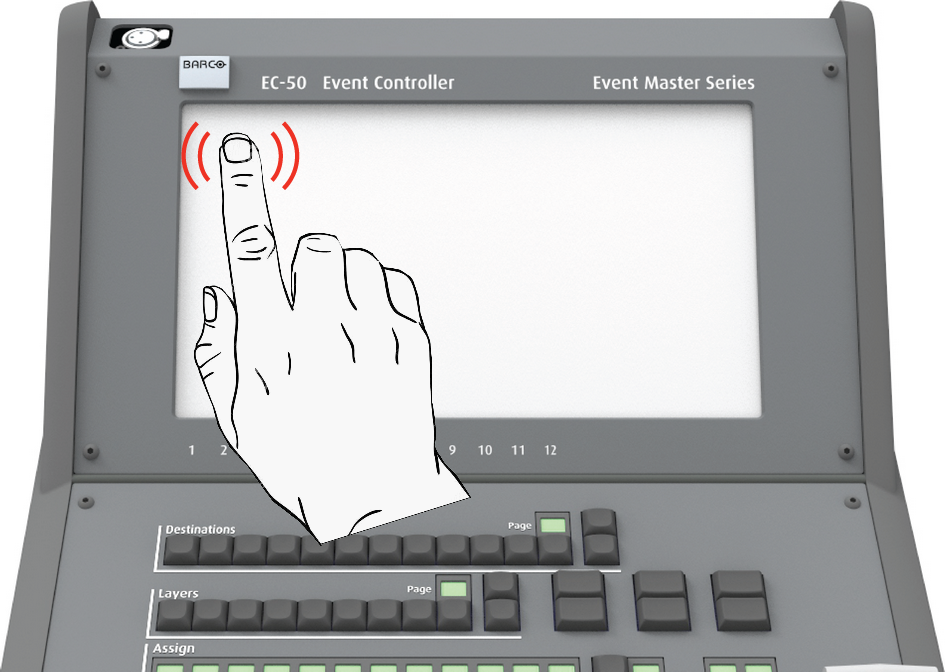

EC-50 Touchscreen calibration
Image 11–5

The operating system on the host computer provides this capability as it would for any standard touchscreen. Refer to the OS manual for the correct procedure.
