General

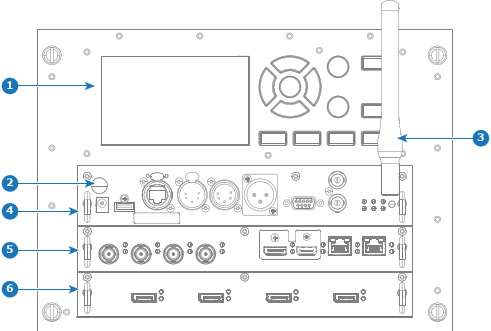

The Input & Communication module consists of a local keypad with LCD panel (1), a communication panel (4) and a Quad Combo input board (5). The free input slot can be used for optional modules (e.g. the Quad DP 1.2 input board).
Tip: Two boards of the same type can be used without restrictions. You can mount a second Quad Combo Input board in the free input slot (6). Alternatively, you can also remove the pre-mounted Quad Combo Input board and replace it with a second optional module (for example, a second Quad DP 1.2 input board).
- 1
- Local Keypad and LCD panel
- 2
- Optional antenna for Legacy WiFi module[4]
- 3
- Optional antenna for Pulse 4G
- 4
- Communication Panel
- 5
- Quad Combo Input board
- 6
- Free input slot (here filled with the Quad DP 1.2 Input board)
