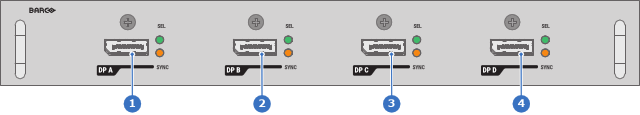

Front panel Quad DP 1.2 input
- 1
- Quad DisplayPort channel A input
- 2
- Quad DisplayPort channel B input
- 3
- Quad DisplayPort channel C input
- 4
- Quad DisplayPort channel D input
8.5 Pulse Quad DP 1.2 input
LED behavior
- The SYNC LED lights up ORANGE when valid input sync is detected.
- The SEL LED lights up GREEN when the input is selected.
- Blinking YELLOW: Sync/signal is present, but not conform with input port standard.
Note: Non-conformity issues can be caused by older or low quality cables unable to handle the requested resolution, or connected signal converters manipulating the signal out of the supported video standards.
