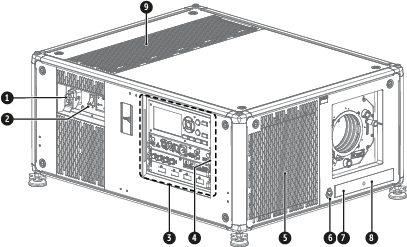

Projector component location
- 1
- Power input socket
- 2
- Power On/Off switch
- 3
- Input & Communication module
- 4
- IR receiver projector right side
- 5
- Dust filter front air inlet
- 6
- Auxiliary connector (for external shutter, DMX, ...)
- 7
- IR receiver projector front side
- 8
- Distance meter (optional)
- 9
- Dust filter top air inlet
For detailed info about the Input & Communication module see chapter “Input & Communication”.
