12.13 Blend curve (Gamma adjustment)

About blend curve (Gamma)

Blend curve or Gamma is an image quality enhancement function that offers a richer image by brightening the already darker portions of the image without altering the brightness of the brighter portions (contrast feeling enhanced).

How to adjust
  1. Click on the up down control until the desired value is reached. The value can be changed between 1.0 and 3.1

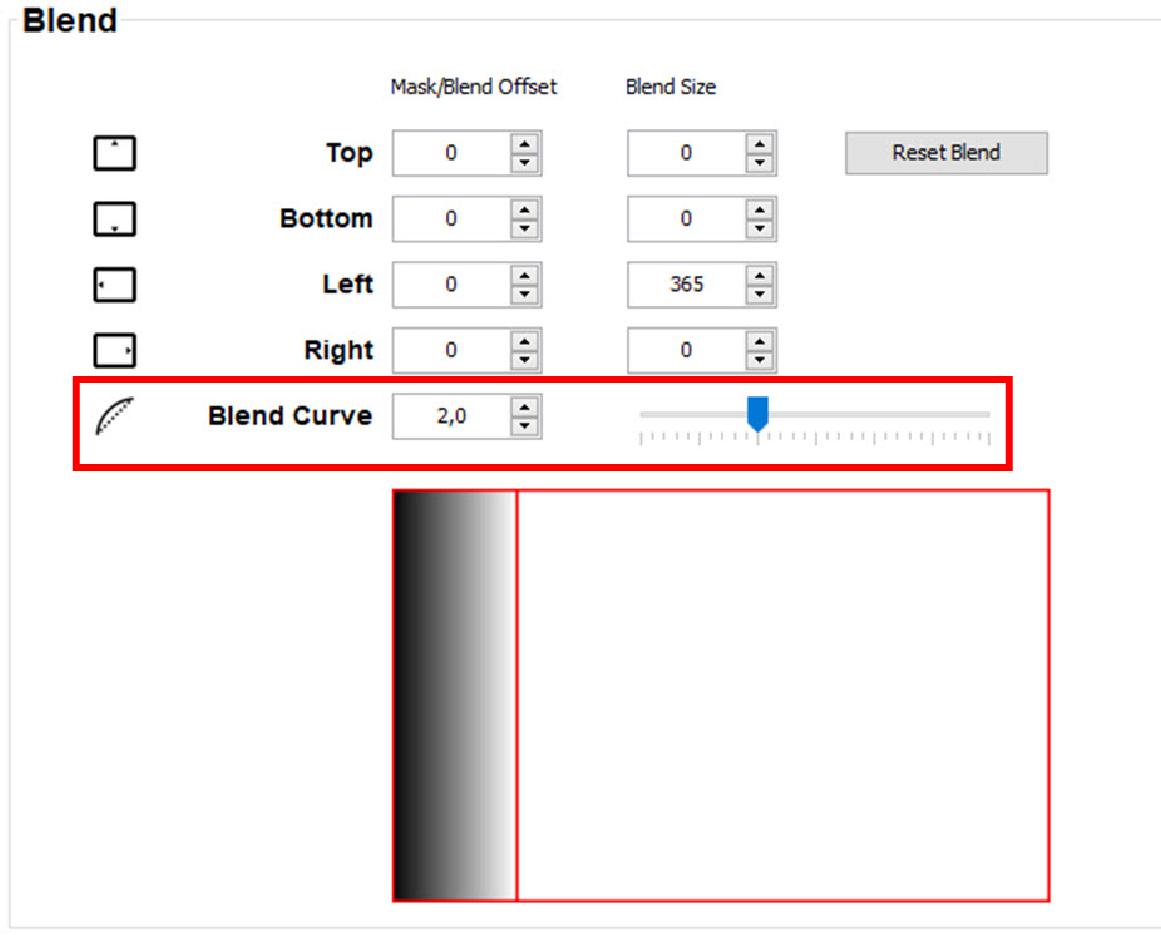

    Image 12–20 Gamma adjustment
    or

    click in the input field, select the current value and enter a new value between 1.0 and 3.1

    or

    click and drag the slider until the desired gamma is reached.
