About Native

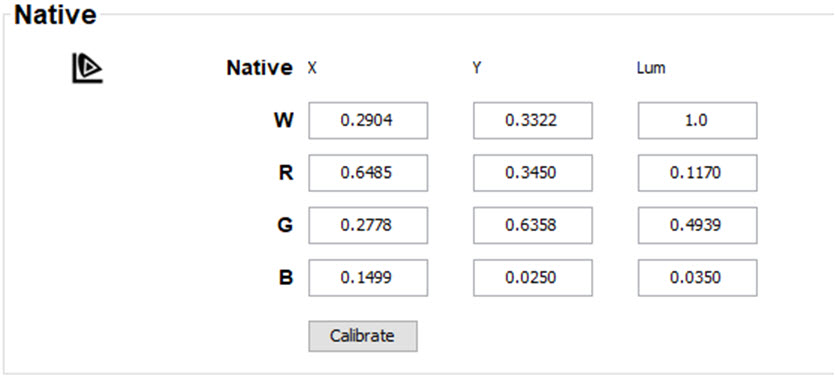

The native P7 coordinates of a projector are factory measured and stored in the projector. When due to a service action, maybe some parts in the full light path are changed, than it is possible that the native coordinates are not correct anymore with result that the real color functionality will not work correctly.

To change the native coordinates, click on Calibrate and proceed with the calibration procedure.

How to calibrate

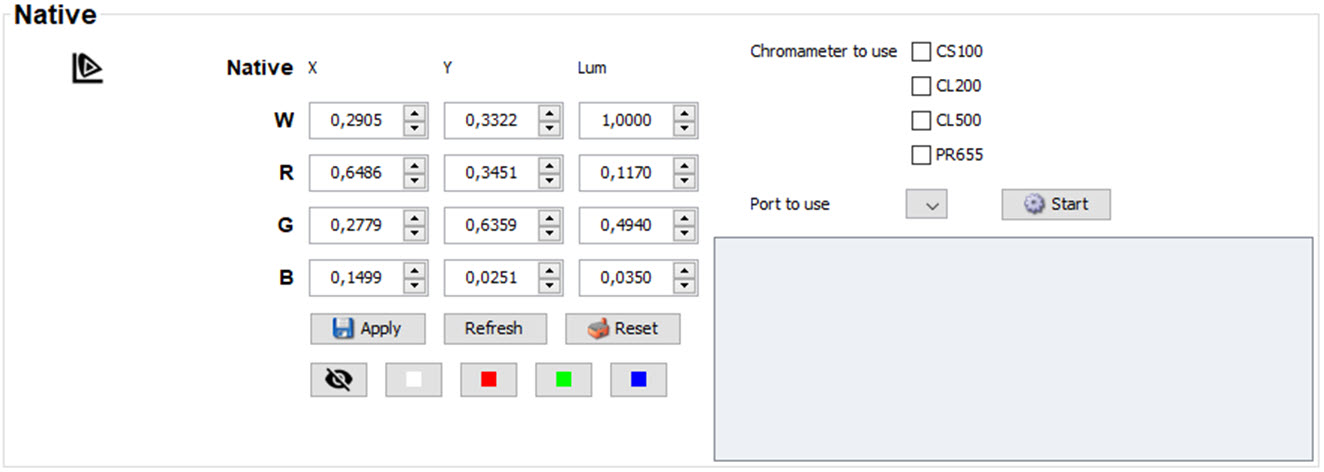

1. Click Calibrate to unlock the current coordinates.

2. Select the type of chromameter you will use. Fill out the port and click Start Chromameter.



3. Switch on a white test pattern and measure the color coordinates. Enter the measured value in the matrix.
4. Continue with red, green and blue.
5. Clear the test pattern. Click on the clear test pattern icon..

6. Click Apply.



   Note: To return to the factory measured coordinates, click on Reset before clicking apply.

   The new measured coordinates are stored in the projector and will be used as the native color coordinates of this projector.
