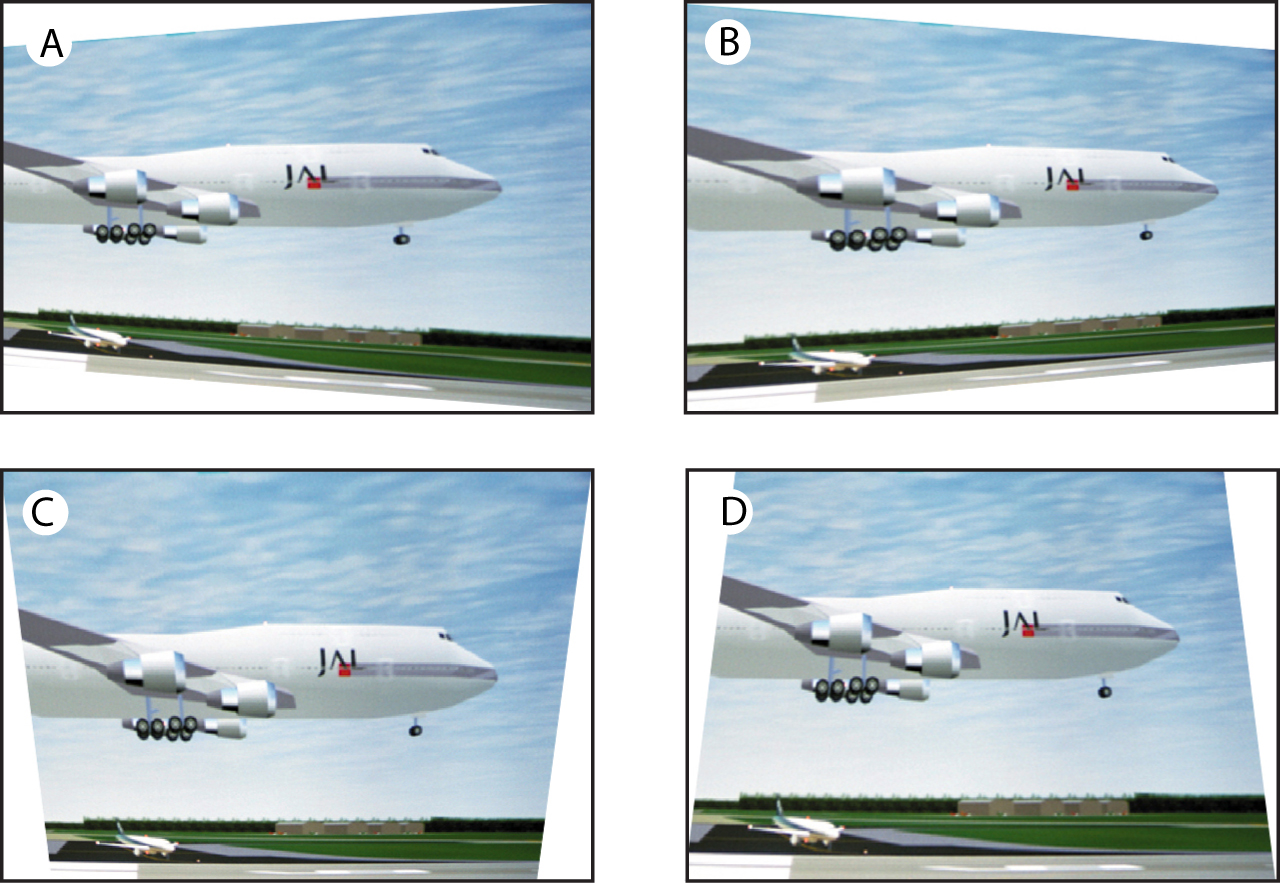

Adjusting vertical and horizontal keystone

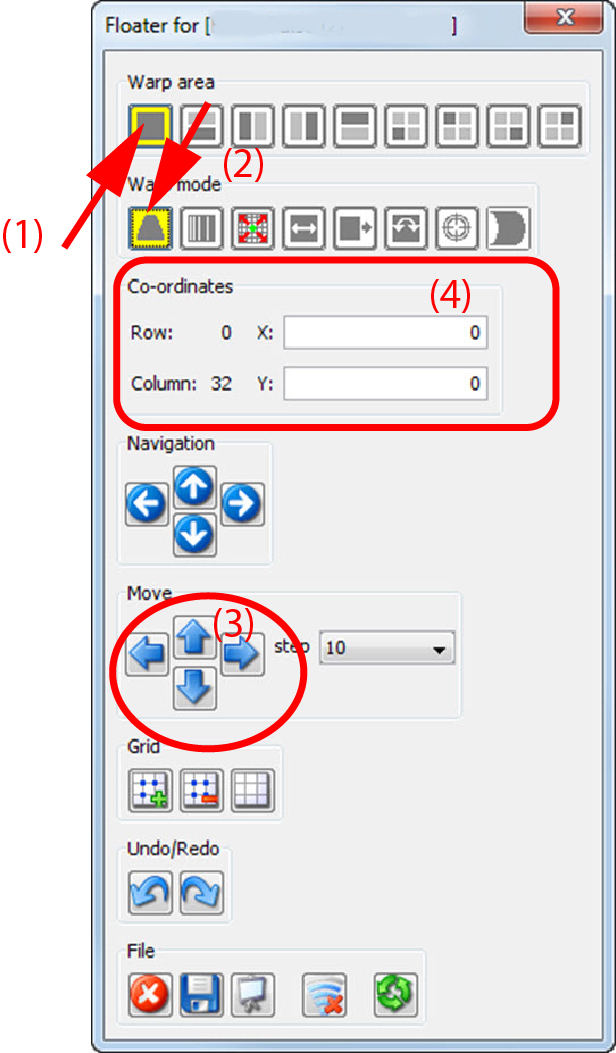

1. Select with the grid buttons of the Floater menu until only the corner nodes are selectable.



2. Select the desired warp area

   Depending on the selected area only the points in that area will be adjusted.

3. Select as warp mode Keystone.

4. Click on the node and drag to the desired position

   or

   select the node and click on the move buttons to move the node horizontal or vertical.

   or

   enter the new position via the Co-ordinates pane.





   Note: To move the selected point to a specific position, enter the move value in horizontal and vertical direction in the Co-ordinates pane of the Floater menu. A value can be negative or positive.
