7.1 Image orientation

The different configurations
Installation optionDetectionExample imageWhat will happen to the projected image?
Desktop frontManualAProjected image will not be flipped or mirrored
Desktop rearManualBProjected image will be flipped horizontally (left side switches to the right side).
Desktop frontManualCProjected image will be flipped vertically (top side switches to the bottom side).
Desktop rearManualDProjected image will be flipped both vertically and horizontally.
Auto frontAutomaticA / CThe tilt sensor will detect if the projector is desktop or ceiling mounted and will project a readable image accordingly
Auto rearAutomaticB / DThe image will be flipped horizontally. The tilt sensor will detect if the projector is desktop or ceiling mounted and will project a readable image accordingly.

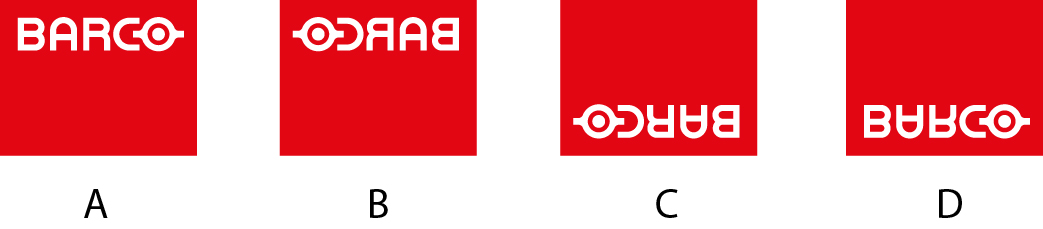

Image 7–1
A
desktop front
B
desktop rear
C
ceiling front
D
ceiling rear
Tip: Font : projector is installed in table or ceiling mount configuration at the same side of the screen as the audience.

Rear: projector is installed in table or ceiling mount configuration at the other side of the screen opposite the audience.

How to change

  1. Click on the first drop down box next to Orientation.

    Image 7–2

    A list with the possible selection opens.

  2. Select the correct orientation from the list.

    The projected image will change accordingly.

  3. Alternatively, select the second drop down box next to Orientation.

  4. You can now choose between manual orientation or auto front/auto rear.

    If Auto front or Auto rear is chosen, the projector will adapt automatically depending on the projector orientation.
