14.7 Projector address

About individual projector address

Before a projector, and only this projector, can be controlled via a remote control, an individual address must be entered in the projector.

This individual projector address can then be used to control the projector via remote control.

Next to an individual projector address, each projector has also a broadcast address for group control.

Note: When controlling the projector via a remote control, only addresses between 0 and 31 are allowed.
How to change
  1. While the Communication tab, go to the IR Properties pane and click on the up down control until the desired projector address is obtained

    or

    click in the input field, select the current address and enter a new address with your keyboard.

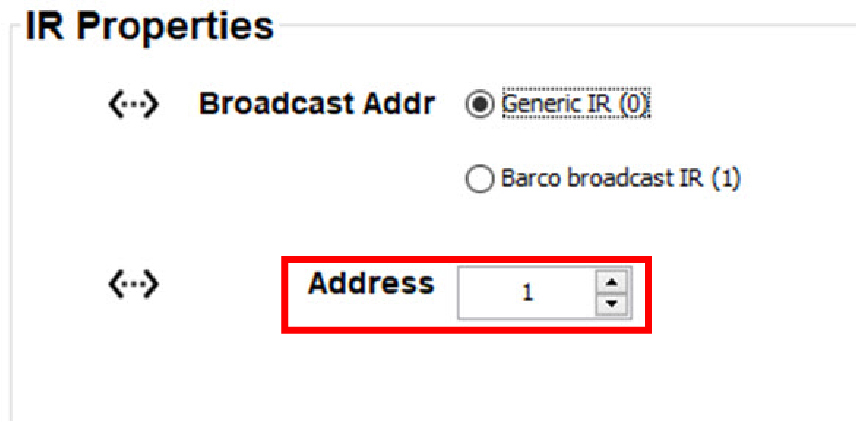

    Image 14–10 Projector address
