How to setup

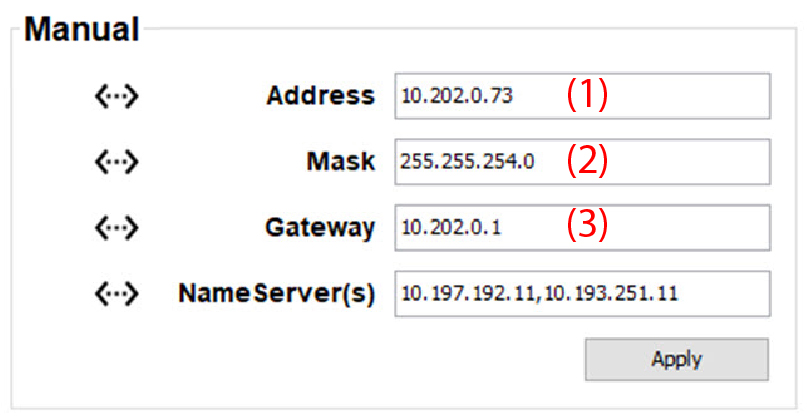

1. Click in the input field next to Address, select the actual address and enter a new address with your keyboard.





   Note: An address contains 4 octets with a maximum value of 255.

   Enter the 4 octets. This must NOT be 0.0.0.0 .

2. Click in the Mask input field and fill out the 4 octets as appropriate for the local subnet.

3. Click in the Gateway input field and fill out the 4 octets. Set the Default Gateway to the IP-Address of the router (MUST be on the local subnet!)



   Note: If there is no router on the projector's local subnet then just set this field to any IP-Address on the subnet.
4. Click Apply to activate.

IP address examples

First example

• PC IP Address : 192.168.100.5
• PC Subnet Mask : 255.255.255.0
• Projector IP Address : 192.168.100.3
• Projector Subnet Mask: 255.255.255.0

Result : Communication possible. PC address is in the subnet range of the projector’s IP address.

Second example

• PC IP Address : 10.16.236.100
• PC Subnet Mask : 255.255.255.0
• Projector IP Address : 192.168.100.3
• Projector Subnet Mask: 255.255.255.0

Result : No communication possible. PC address is not in the subnet range of the projector’s IP address.

Third example

• PC IP Address : 192.168.200.1
• PC Subnet Mask : 255.255.255.0
• Projector IP Address : 192.168.100.3
• Projector Subnet Mask: 255.255.255.0

Result : No communication possible. PC address is not in the subnet range of the projector’s IP address. The third group in the PC IP address and Projector IP address must be the same.

Fourth example

• PC IP Address : 192.168.200.1
• PC Subnet Mask : 255.255.0.0
• Projector IP Address : 192.168.100.3
• Projector Subnet Mask: 255.255.0.0

Remark : Communication possible. PC address is in the subnet range of the projector's IP address. The third group in the IP¨ addresses can be any value as the third group in the subnet mask is 0.
