E2 Lite and EC-40 - HDMI/DisplayPort input card

4.4 HDMI/DisplayPort input card

General

The HDMI/DisplayPort input card has two 19-pin HDMI connectors which can support an HDMI video signal, and two 20-pin DisplayPort connectors supporting DisplayPort video signal.

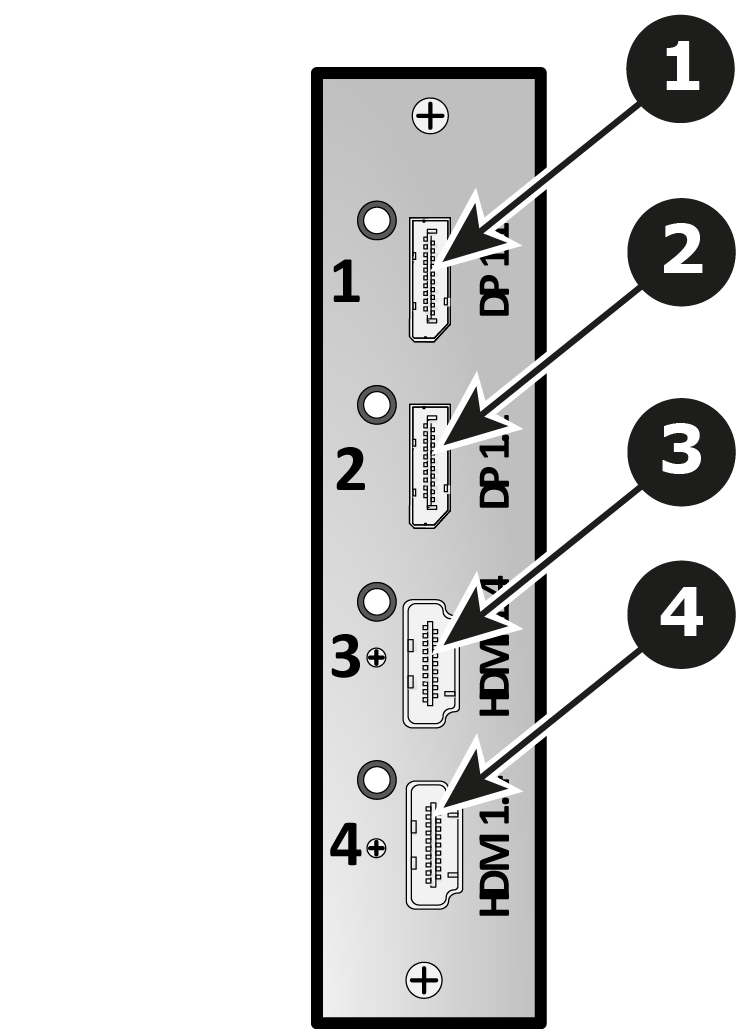

The figure below illustrates the HDMI/DisplayPort input card's rear panel connectors:

Image 4–6 HDMI/DisplayPort Input Card Rear Panel

1	DisplayPort connector — DisplayPort 1 with an LED that turns on green when a valid sync has been detected
2	DisplayPort connector — DisplayPort 2 with an LED that turns on green when a valid sync has been detected
3	HDMI connector — HDMI 1 with an LED that turns on green when a valid sync has been detected
4	HDMI connector — HDMI 2 with an LED that turns on green when a valid sync has been detected

Features

Process up to 4 signals independently
2x 19–pin HDMI connector (Type A)
2x 20–pin DisplayPort connector
Each input channel includes an LED that turns green when a valid sync is detected.

HDMI specifications

HDMI per 1.4a specifications
Supported format:
- formats up to 2,560x1,600@60 and 3,840x1,200@60 (30 bits)
- 4K/UHD Supported:
  - 3,840x2,160/ 23.98/24/25/29.97/30 input via 1x HDMI, 2x HDMI (L and R half) or 4x HDMI (quadrants)
  - 3,840x2,160/ 50/59.94/60 input via 2x HDMI (L and R half) or 4x HDMI (quadrants)
  - 4,096x2,160/ 23.98/24/25/29.97/30 input via 1x HDMI, 2x HDMI (L and R half) or 4x HDMI (quadrants)
  - 4,096x2,160/ 50/59.94/60 input via 2x HDMI (L and R half) or 4x HDMI (quadrants)
EDID version 1.3 compatible
HDCP version 1.4 compatible

DisplayPort specifications

DisplayPort per 1.1a specifications
Supported format:
- formats up to 2,560x1,600@60 and 3,840x1,200@60 (30 bits)
- 4K/UHD Supported:
  - 3,840x2,160/ 23.98/24/25/29.97/30 via 1x DP, 2x DP (L and R half) or 4x DP (quadrants)
  - 3,840x2,160/ 50/59.94/60 via 2x DP (L and R half) or 4x DP (quadrants)
  - 4,096x2,160/ 23.98/24/25/29.97/30 via 2x DP (L and R half) or 4x DP (quadrants)
  - 4,096x2,160/ 50/59.94/60 via 2x DP (L and R half) or 4x DP (quadrants)
EDID version 1.3 compatible
HDCP version 1.3 compatible

HDMI: High-Definition Multimedia Interface (HDMI) is a compact audio / video interface for transferring uncompressed video data and compressed / uncompressed digital audio data from an HDMI-compliant device, the source device, to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

DisplayPort: Digital display interface developed by the Video Electronics Standards Association (VESA). This interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to transmit audio, USB, and other forms of data.
