General

The Preset is a register that enables you to store destination setups, “looks,” to memory, and to recall them.

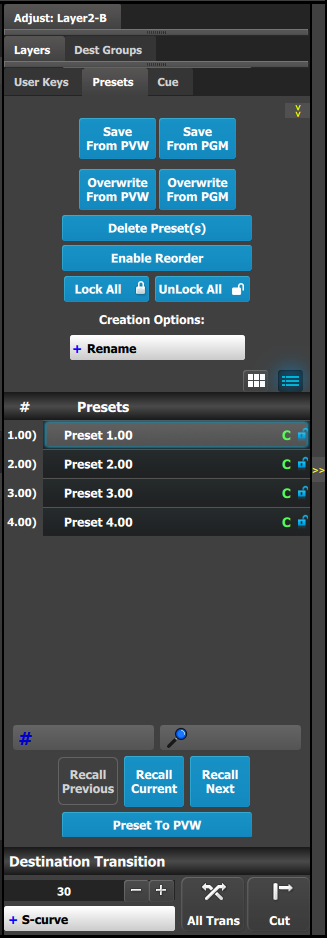

Presets configuration menu description

This menu provides: A numbered list of the available Presets. Buttons to select the complete or relative saving of Presets. A Save from PVW button to create a new Preset from selected Destination(s) in Preview. An Overwrite from PVW button to overwrite the preset data in the selected Preset from selected Destination(s) in Preview. A Save from PGM button to create new Preset from the selected Destination(s) in Program. An Overwrite from PGM button to overwrite the preset data in the selected Preset from selected Destination(s) in Program. A Delete Preset(s) button to enter a multiple delete of Presets. An Enable Reorder button to enable the reordering of Presets in the list. A Lock All button to lock all the Presets in the list. An Unlock All button to unlock all the Presets in the list. A couple of search edit boxes to search Presets. Three buttons to manage Preset recall actions.

Save From PVW

Saves the current look on Preview into a new Preset. Only Destinations that are active or selected will be saved. For example: There are 3 Destinations. User enables Dest1 and Dest 3 and presses “Save to new Preset.” Only Dest1 and Dest3 looks are stored. Dest 2 is not part of this Preset.

Save From PGM

Saves the current look on PROGRAM into a new Preset. Only Destinations that are active or selected will be saved. For example: There are 3 Destinations. User enables Dest1 and Dest 3 and presses “Save to new Preset.” Only Dest1 and Dest3 looks are stored. Dest 2 is not part of this Preset.

Overwrite From PVW

This button allows the override of a selected Preset from the Preview, if the destination is active. The name of the preset is not updated.

Overwrite From PGM

This button allows the override of a selected Preset from the Program, if the destination is active. The name of the preset is not updated.

Delete Preset(s)

By pressing this button, the delete “x” marks will appear next to all presets. Select the presets you like to delete and then press the red “Delete Selected” button.

Search edit box

Search Presets by characters in names. A list of the preset with be singled out. List restores to normal once search box is cleared.

Search Number (# icon)

Search Preset by number, User types the number of the preset wanted and this preset will be instantly selected ready for recall.

Recall buttons

They are not enabled unless a Preset is selected from the list.

1. Recall Previous button: Recalls the Previous preset. Not active is the Preset1 is selected.
2. Recall Selected button: Recalls the currently selected Preset.
3. Recall Next: Recalls the next preset. Not active the last preset in the list is selected.

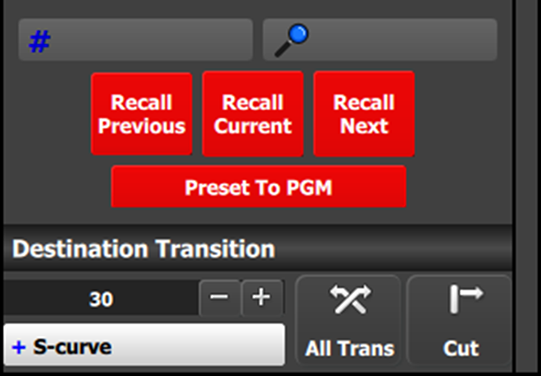

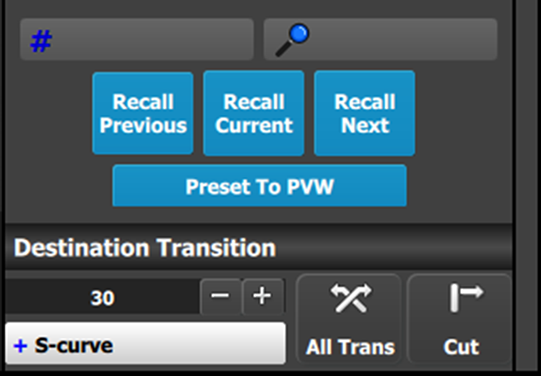

Preset To PVW / Preset To PGM

Pressing this button toggles between recalling Presets to Preview (see Image 6–58) or directly to Program (see Image 6–59). The functions of recall buttons are the same in either case, but Presets recalled to Program automatically transition to Program as soon as they are ready to go. This also applies to dragged and dropped presets.
