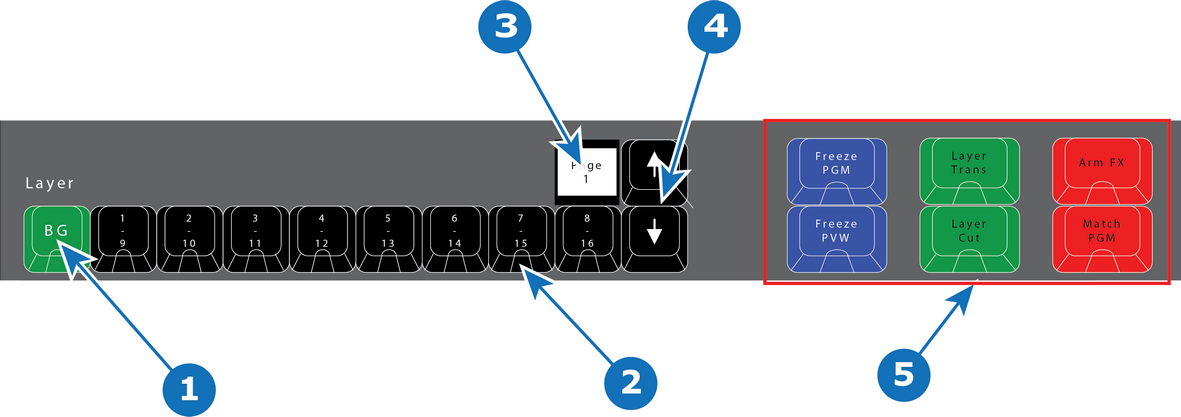

Overview
- 1
- Background button + 8 Layer buttons.
- 2
- LED (Red or Green).
- 3
- Contextual Display (show the range of buttons — e.g. 1–8).
- 4
- Arrow buttons (up and down).
- 5
- Layer Operator buttons.
9.7 Layer buttons
Description
There are 9 Layer buttons with as many pages as supported by the system. The red or green LEDs under these buttons indicate the selection of layers. The first button is ALWAYS background layer and therefore marked BG.
LED color under Layer buttons are RED and GREEN:
| LED color | Description |
| Red | Selected on PGM |
| Green | Selected on PVW |
Button 2 – 9 is marked 1/8 on top and 9/16 on the bottom of the button.
The contextual Display above the button marked 8/16 will show the range of buttons 1 – 8, 9 – 16 etc. Use the Arrow (up and down) to change the range.
Layer Operator Buttons
The six larger buttons to the left of the Layer buttons are Layer Executor buttons mapped to the corresponding functions in the EMTS. These are further explained below in chapter “Controller Operation”.
