General

The chassis of the Event Master E2 Lite video processor is designed to be rack mounted. The device is supplied with front rackmount hardware.

Please note the following important points:

• The E2 Lite is 4RU in height.
• The maximum ambient operating temperature is 40° C.
• Leave sufficient front and rear space to ensure that airflow through the unit is not restricted.
• When installing equipment into a rack, distribute the units evenly to prevent hazardous conditions that may be created by uneven weight distribution.
• Connect the unit only to a properly rated supply circuit.
• Reliable grounding (earthing) of rack-mounted equipment should be maintained.
• Rack mount the unit from the front rack ears using four rack screws (not supplied). Threads may be metric or otherwise, depending upon the rack type.

How to install E2 Lite in a rack

Use the following steps to rack mount the E2 Lite:

1. The E2 Lite is shipped with side rails included in the shipping case and not installed onto the chassis. These side rails, when they are properly installed and adjusted, assist with the distribution of chassis (and cable) weight within your rack. Use the following steps to properly adjust the side rails:

   1. Measure and install the two supplied mounting brackets on your rear rack rails.

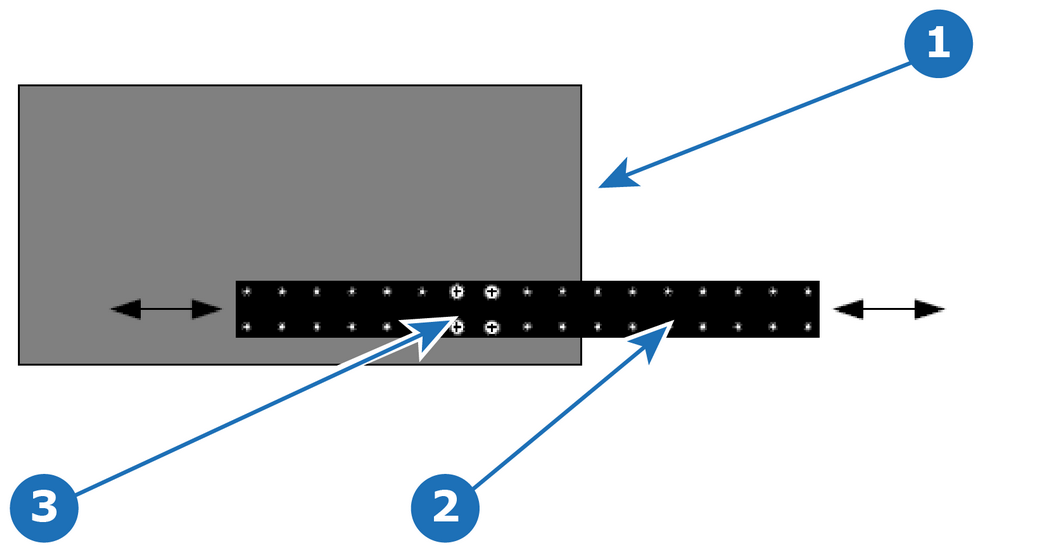

   2. Measure the distance between the front and rear rack rails. Remove the four mounting screws that secure each side rail to the E2 Lite, and then adjust the spacing of each side rail as necessary.



   3. Re-install the mounting screws. When properly adjusted, the end of each side rail will protrude through the slot in the rear mounting bracket, once the chassis is rack mounted.

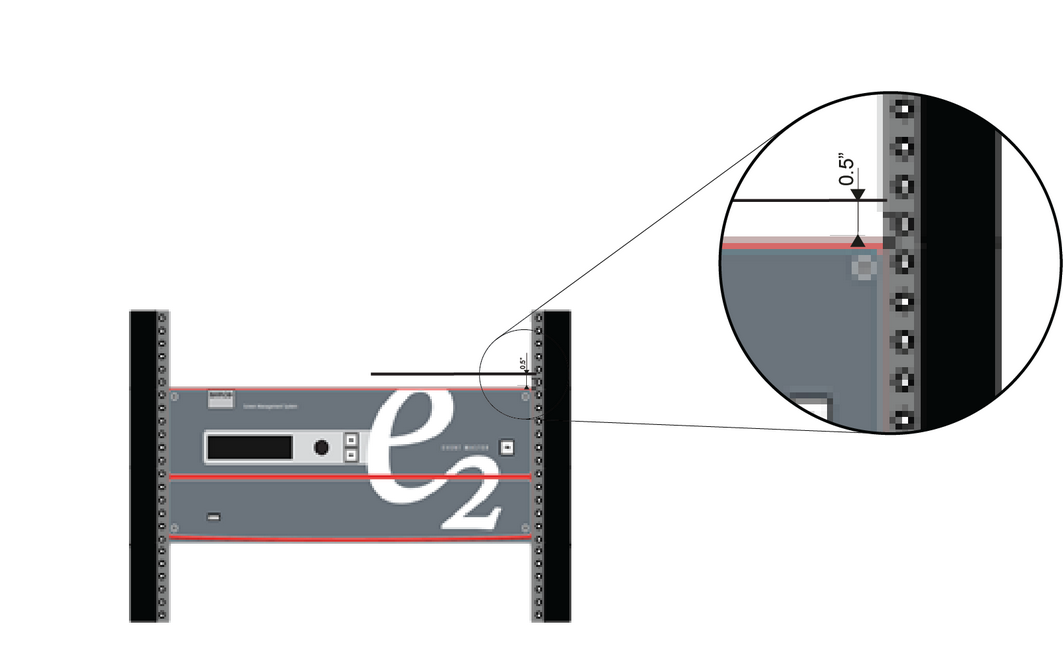

      To take advantage of this feature, ensure that there is at least 1/2” of clearance above the chassis.



2. For the E2 Lite’s two keyhole slots, measure and install two rack screws in your equipment rack’s front rails. Allow each screw to protrude approximately 3/4” from the surface of the rails.
3. Lift the chassis, and while supporting it, slide the side rails through the slots in the rear mounting brackets.
4. While continuing to support the chassis, slide the screws (in the front rails) through the two keyholes, and let the chassis settle up into the keyhole slots.
5. Tighten the two lower screws, then install and tighten the two uppers screws in the rack rail.
