General

The unit has several colored buttons and led indications which support the user by indicating selections and possible actions.

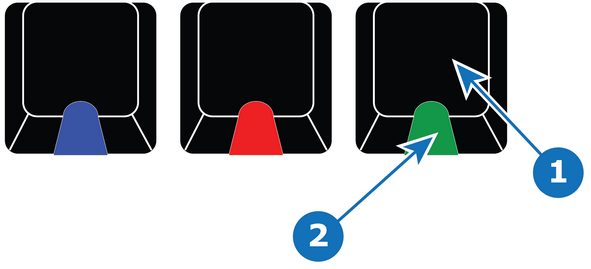

Button color

• Blue buttons indicate the Freeze function.
• Green buttons indicate a layer selection or an action to a layer selection.
• Red buttons always indicate Transitions.
• Yellow indicate save functionality.
• Black is neutral.

Led Color in buttons

• Blue indicates selected in destination buttons.
• Green indicates that the layer on preview is selected (Normal).
• Green can also indicate that the buttons function has an opposite function or other mode.
• Red indicates that the layer on program is selected (Live or Unlocked Program).
• Red can also indicate that the buttons function is selected / active, like T-Bar Disable.

Backlight color for display

Note: Applies to an entire row of displays.

• Source = Yellow backlight.
• User Key = Magenta backlight.
• Background Source = Green backlight.
• Preset = White backlight.

Note: A Red backlight is reserved for LOS (Loss Of Signal).
