General

The HDMI output card has four 19-pin HDMI connectors which can provide a HDMI video signal.

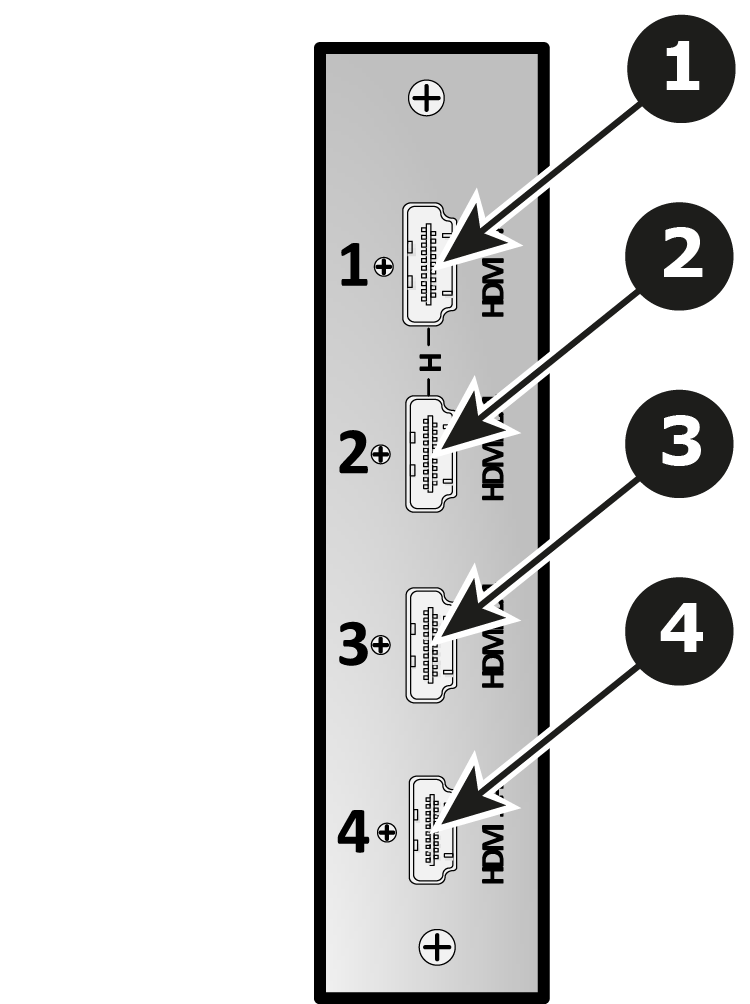

The figure below illustrates the HDMI output card's rear panel connectors:

Features

• Provide up to 4 independent signals
• 4x 19–pin HDMI connector (Type A)

Specifications

• HDMI per 1.4a Specification

• Supported format: up to 1920x1200@60

  • EDID version 1.3 compatible
  • HDCP version 1.4 compatible
