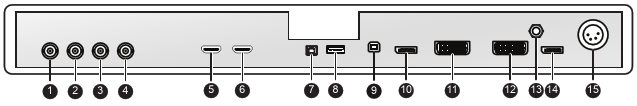

2.3 Connector view

Overview
Image 2–3
  1. SDI 1: Single link in or Quad link in top left (*)
  2. SDI 2: Single link out or Quad link in top right (*)
  3. SDI 3: Single link in or Quad link in bottom right (*)
  4. SDI 4: Single link out or Quad link in bottom left (*)
  5. HDMI 2 in
  6. HDMI 1 in
  7. +5 VDC – 2 A power out
  8. USB 2.0 type A interface
  9. USB 2.0 type B interface
  10. Main (Right) DisplayPort in
  11. DVI-D in
  12. DVI-D out
  13. Potential Equalization pin (POAG)
  14. 2nd (Left) DisplayPort in
  15. 24 VDC power in

(*) The BNC SDI connectors match the characteristic impedance of 75 ohm cables. See “SDI config” about the possible SDI configuration modes.
