7.10 Technical specifications

Overview
Screen technologyTFT AM LCD / IPS technology / LED backlight
LCD panel active screen size (diagonal)31.1” / 789 mm
LCD panel active screen size (H x V)698 x 368 mm
LCD panel aspect ratio (H:V)17:9
LCD panel resolution4k-2k (4096 x 2160)
Pixel pitch0.1704 mm
Color support1073 million (10-bit)
Color gamutNative: Wide color gamut (96% DCI-P3)
Calibrated color space: ITU 709 (default), BT. 2020, DCI-P3 D65
Viewing angle (H, V)178° Hor / 178° Ver
LuminanceNative: 550 cd/m² (Typical)
Default setting: 450 cd/ m² @6500K stabilized
Contrast ratio1400:1 (typical)
LCD response time (Tr + Tf)20 ms
White pointNative: 7200K (Typical)
Calibrated: 5600K, 6500K, 7600K, 9300K
GammaNative, 1.8, 2.2, 2.4, DICOM, Video
Housing colorRAL 9003
Screen protection2-side anti-reflective alkali-aluminosilicate glass
KeyboardCapacitive touch keyboard
Video input signals

4K-UHD input

  • 1x DP 1.1 up to 4096 x 2160 @30Hz
  • 2x DP 1.1 up to 2048 x 2160 @50Hz/60Hz
  • 1x DP 1.2 MST up to 4096 x 2160 @50Hz/60Hz
  • 2x HDMI 2.0 up to 4096 x 2160 @50Hz/60Hz [3]

  • 4K SDI:

    4x 3G-SDI Quad link (each link up to 2048 x 1080 @50/60 Hz)

    2x 12G-SDI up to 4096 x 2160 @50/60 Hz (SDI 1 or SDI 3)

FHD input (upscaled to 4K)

  • 1x DVI
  • 1x 3G-SDI (SDI 1 or SDI 3)
Video output signals

SDI loopthrough (not available in Quad link):

  • SDI 2: loopthrough of SDI 1
  • SDI 4: loopthrough of SDI 3
1x DVI (4K display screen clone - downscaled to 1080i/1080p)
Video formats
  • DisplayPort 1.2 MST (10 bit) up to 4096 x 2160@60Hz (displayed at native resolution) with HDCP 1.3
  • Dual stream DP 1.1 (10 bit) up to 2048 x 2160 x 2 @60Hz synchronized (displayed at native resolution) with HDCP 1.3

  • SDI compliance standards:

    • 12G-SDI (10 bit): SMPTE ST-2082-10
    • QUAD LINK 3G-SDI (10 bit): SMPTE ST 425-5 (Level A)
    • 3G-SDI (10 bit) : SMPTE ST 424/425 (Level A)
    • HD-SDI (10 bit): SMPTE ST 292
    • SD-SDI (10 bit): SMPTE ST 259
  • DVI (8 bit) up to 1920 x 1080 @60Hz with HDCP 1.3
  • HDMI 2.0 up to 4096 x 2160 @60Hz RGB/YCbCr (4:2:0/4:2:2/4:4:4) with HDCP 2.2 and 1.4
  • HDMI 1.4 up to 4096 x 2160 @30Hz RGB/YCbCr (4:2:2/4:4:4) with HDCP 1.4
Remote controlUse Type B port for FW download & DDC protocol on DVI and DP auxiliary channel (on DP main connector)
Power consumption (Max)190W / 24V ± 10%
External power supply

AC input: 100 – 250 VAC / 47-63 Hz auto-switch

DC output: +24 VDC / 10 A

Max power out: 250 W

DC power output

DVI connector: +5V on pin 14 & 16 / 500mA

DP connector: +3.3V / 500mA

DC out connector: +5V / 2A

Power management

Low power mode: 33W (typical)

Power-off: ~ 1 W

Dimensions display (W x H x D)777 x 472 x 93 mm (30.6 x 18.6 x 3.7 in)
Net weight display12.1 kg (26.6 lbs)
Net weight packaged17.0 kg (37.5 lbs)
Mounting standardVESA (100 x 100 mm, 200 x 100 mm)
Certifications
  • FDA Class I, 510(k) exempt
  • CE (Medical Device Class I)

  • CCC (China) GB 17625.1-2022;GB 4943.1-2022;GB/T 9254.1-2021

    Safety specific:

  • AAMI ES60601-1:2005, ES60601-1:2005/AMD1 1:2012, ES60601-1:2005/

    AMD2:2021

  • CAN/CSA-C22.2 NO. 60601- 1:14/A2:2022
  • IEC 60601-1:2005, AMD1:2012, AMD2:2020
  • EN 60601-1:2006/A1:2013/A12:2014/A2:2021
  • IEC 62368-1: 2018
  • EN IEC 62368-1:2020+A11:2020
  • IEC 60601-1-2: 2014 +A1:2020

  • EN 60601-1-2: 2015 +A1:2021

    EMI specific:

  • FCC part 15 Class B

  • ICES-003 Level B

    Environmental:

  • EU RoHS, REACH, WEEE
Operating temperature0 ÷ 35 °C (for performance); 0 ÷ 40 °C (for safety)
Storage temperature-20 ÷ +60°C
Operating humidity10 ÷ 90% (non-condensing)
Storage humidity5 ÷ 90% (non-condensing)
Protection levelIP20 (IP45 front side only)
Warranty3 years
Timings full-HD & 4MP
FormatSDIDVIHDMIDP 1.1
720x480p@59.94HzNYYY
720x480p@60.00HzNYYY
720x576p@50.00HzNYYY
800x600p@56.25HzNYNY
800x600p@60.317HzNYYY
800x600p@72.19HzNYNY
800x600p@75.00HzNYNY
1024x768p@60.004HzNYYY
1024x768p@70.069HzNYNY
1024x768p@75.029HzNYNY
1024x768p@85.00HzNYNY
1152x864p@75.00HzNYNY
1280x720p@29.97HzNYNY
1280x720p@30.00HzNYNY
1280x720p@50.00HzYYYY
1280x720p@59.94HzYYYY
1280x720p@60.00HzYYYY
1280x1024p@60.013HzNYYY
1280x1024p@75.025HzNYNY
1280x1024p@85.00HzNYNY
1400x1050p@60.00HzNYNY
1600x1200p@60.00HzNYYY
1680x1050p@59.95HzNYNY
1920X1080i@50HzYYYY
1920X1080i@59.94HzYYYY
1920X1080i@60HzYYYY
1920x1080p@25HzYYYY
1920x1080p@29.97HzYYYY
1920x1080p@30.00HzYYYY
1920x1080p@50.00HzYYYY
1920x1080p@59.94HzYYYY
1920x1080p@60.00HzYYYY
1920x1200p@60.00HzNYYY
2048x1536p@60.00HzNNNY
2560x1440p@60.00HzNNYY
2560x1600p@60.00HzNNYY
Timings UHD / 4K
FormatHDMIDP 1.1DP 1.1 DualDP 1.2 MSTQuad-SDI (*)12G-SDI (*)
3840x2160@25.00HzYYYYNN
3840x2160@30.00HzYYYYNN
3840x2160@50.00HzYNYYYY
3840x2160@60.00HzYNYYYY
4096x2160@25.00HzYYYYNN
4096x2160@30.00HzYYYYNN
4096x2160@50.00HzYNYYYY
4096x2160@60.00HzYNYYYY

(*) Accepted formats: Square-division & 2-sample interleave

Dimensions

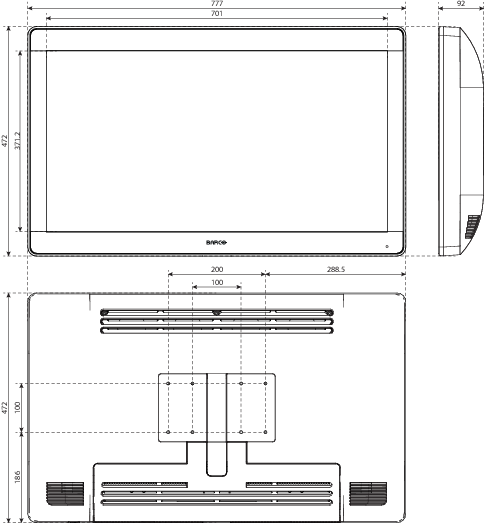

Image 7–1

[3] DP 1.2 SST to HDMI 2.0 adapter available from Barco
