4.9.3 Test pattern

Note: Actions executed here are applied instantly to the device while it is online. No queuing or deferred execution is possible.

Note: Live control of test pattern is not supported on G-series or offline projectors.

Note: Test pattern action requires firmeware version 2.10.0 or later.

Location

IMS main sidebar > Fleet view > Device detail page > Control > Test pattern

Layout

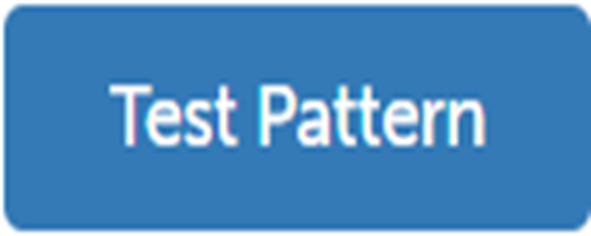

Image 4–27

How to perform test pattern

Click Test pattern.
The Test pattern window will be prompted.

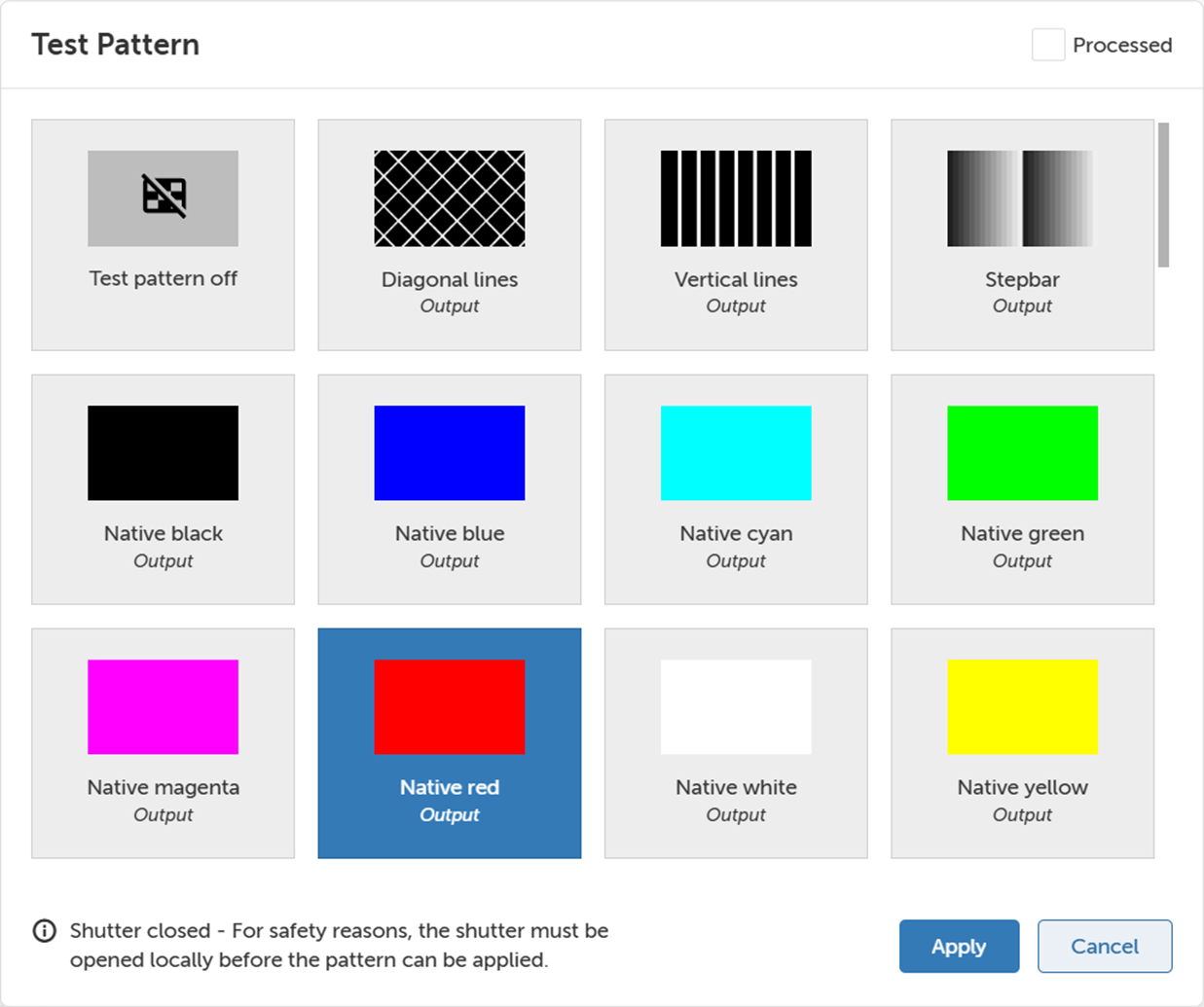

Image 4–28
Click the desired pattern.
Click Apply.
A pop-up window confirms that the test pattern was applied successfully.
