4.2 Power-up initialization

How to power up the PDS-4K

Connect power to the PDS-4K, then locate the power switch on the rear panel and turn power On. While the system is initializing, the front-panel buttons light up, and the Barco logo is displayed.

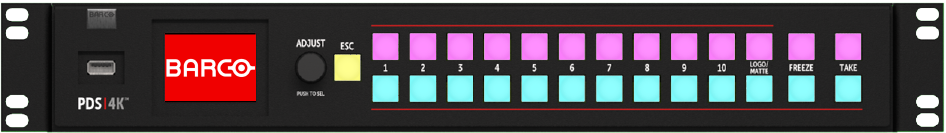

Image 4–1 Barco logo and front-panel buttons

While the unit is initializing, the display shows an “In Progress” screen with the software version, the OS version, and a progress bar, and the top and bottom row buttons are not lit.

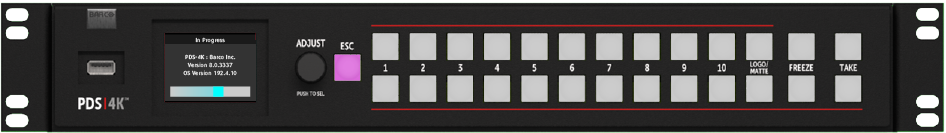

Image 4–2 “In Progress” screen and front-panel buttons

When initialization is complete the PDS-4K displays the status of the system. Different buttons may be lit, depending on the configuration of the system.

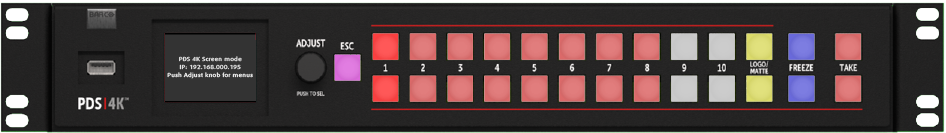

Image 4–3 Status screen and front-panel buttons

The status screen displays the IP address and PGM output formats plus a message telling the user to push the Adjust knob to access the menus.
