PDS-4K - PDS-4K JSON RPC remote control

B.2 PDS-4K JSON RPC remote control

General

JSON (JavaScript Object Notation) is a lightweight format that is used for interchanging data. It is based on a subset of JavaScript language: the way objects are built in JavaScript.

Introduction to JSON

JSON is built on two structures:

A collection of name/value pairs: In various languages, this is realized as an object, record, struct, dictionary, hash table, keyed list, or associative array.
An ordered list of values: In most languages, this is realized as an array, vector, list, or sequence.

Here is an example of JSON data:

{
     "firstName": "John",
     "lastName": "Smith",
     "address": {
         "streetAddress": "21 2nd Street",
         "city": "New York",
         "state": "NY",
         "postalCode": 10021
     },
     "phoneNumbers": [
         "212 555-1234",
         "646 555-4567"
     ]
 }

How JSON interacts with the PDS-4K presentation switcher and Event Master processors

JSON uses JSON RPC (REST based) to interact with the PDS-4K presentation switcher. JSON-RPC is a remote procedure call protocol encoded in JSON.

JSON-RPC works by sending a request to a server implementing this protocol. The client in that case is typically software intending to call a single method of a remote system. Multiple input parameters can be passed to the remote method as an array or object, whereas the method itself can return multiple output data as well.

There are JSON RPCs defined to perform tasks on the PDS-4K presentation switcher. User needs to send JSON request through their application or open source application like Postman.

These applications should send request on IP, where the PDS-4K presentation switcher is running and fixed port 9999 (Webserver of the PDS-4K presentation switcher is running on port 9999).

Use JSON from the web application

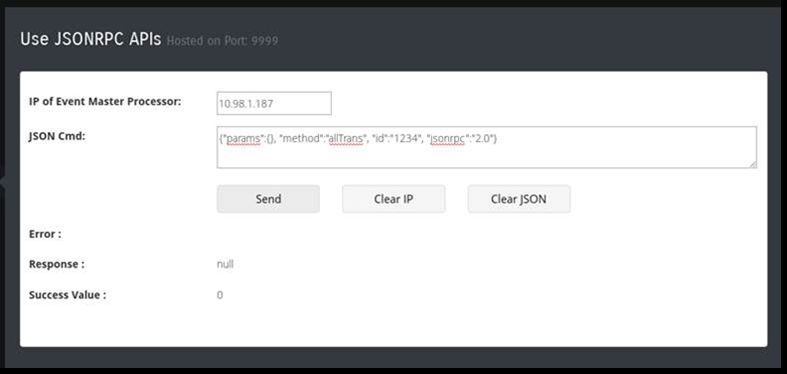

To use the JSON APIs from the web application, select the Settings icon on the Menu navigation bar, and select JSONRPC API from the web app dashboard.

Postman

Postman is an application that you can use to test the Event Master JSON API.

Go to the GetPostman website.
(https://www.getpostman.com/)
Download the free Postman app.
Install Postman on your machine.
Launch Postman and follow these steps to send JSON commands to the Event Master processor.
1. Select POST from the dropdown next to the URL text box.
2. Enter the request URL with port 9999.
3. Type “Content-Type” for header and “application/json” as value of this header.
  (See https://www.getpostman.com/docs/requests for more information on sending requests.)

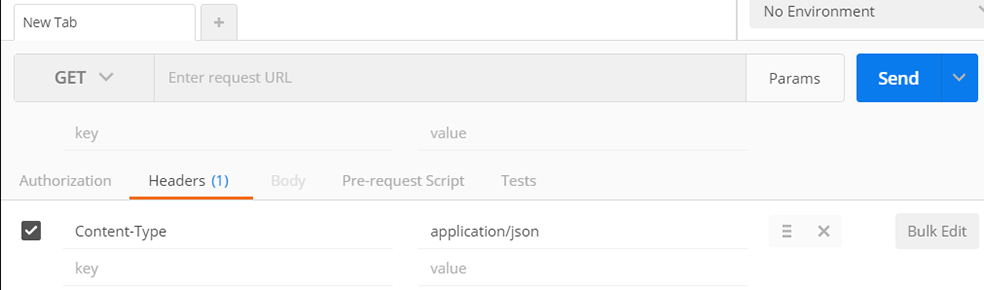

  Image B–2 Content-Type and application/json
Select Body and click on raw from the buttons available below the URL text box.

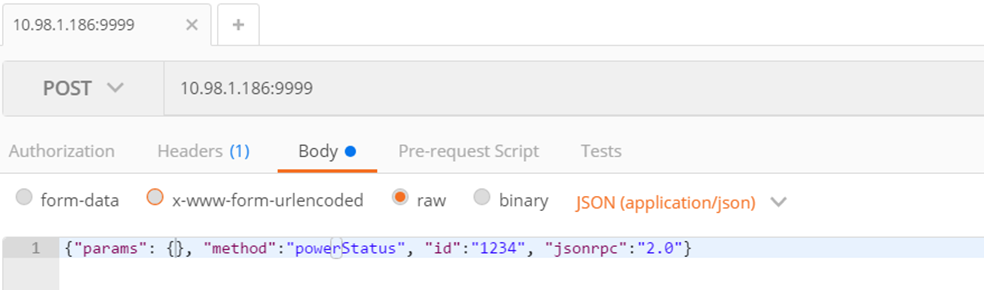

Write the request in the body.

A request is a call to a specific method provided by a remote system. It must contain three certain properties:

method: a String with the name of the method to be invoked.
params: an Object or Array of values to be passed as parameters to the defined method.
id: a value of any type used to match the response with the request to which it is replying.

The receiver of the request must reply with a valid response to all received requests. A response must contain the properties mentioned below.

result: the data returned by the invoked method.
If an error occurred while invoking the method, this value must be null.
error: a specified error code if there was an error invoking the method, otherwise null.
id: the id of the request to which it is responding.

For example: {"params":{}, "method":"powerStatus", "id":"1234", "jsonrpc":"2.0"}

Here, powerStatus is the JSON API to be sent.

JSON APIs

Here are some of the JSON APIs defined for controlling the PDS-4K presentation switcher. If you have a host / client Event Master setup, JSON must be sent to the host unit. For all the requests, this section explains the parameter passed or used in the RPC calls. If the params object is blank that means that API doesn’t require a parameter.

Note: Requests are case sensitive.

allTrans

Definition:
- It executes the “allTrans” command.
Request:
- param: {"transTime": 12}
  - Float value, will be applied to all armed destinations (optional).
  - Max value is 12.
Response:
- response: null
- success: (0=success, anything else is an error)
Example:
- {"params":{}, "method":"allTrans", "id":"1234", "jsonrpc":"2.0"}
- {"params": {"transTime": 1.1 }, "method":"allTrans", "id":"1234", "jsonrpc":"2.0"}

cut

Definition:
- It executes the “Cut” command.
Request:
- params: {} - It doesn’t require any parameter.
Response:
- response: null
- success: (0=success, anything else is an error)
Example:
- {"params":{}, "method":"cut", "id":"1234", "jsonrpc":"2.0"}

resetFrameSettings

Definition:
- Expose ALL reset types on Event Master processor with different options.
Request:
- params: {"reset":x},
  “x” can be 0, 1, 2, 3
  - 0: Soft reset.
  - 1: Factory reset.
  - 2: Factory reset (save IP).
  - 3: Factory reset (save IP/EDID).
Response:
- response: null
- success: (0=success, anything else is an error)
Example:
- {"params":{"reset": 0}, "method":"resetFrameSettings", "id":"1234", "jsonrpc":"2.0"}

powerStatus

Definition:
- This queries the power plug status of the Event Master processor.
Request:
- params: {} - It doesn’t require any parameter.
Response:
- response: {FrameId1 :{ PowerSupply1Status":X}}
  - PwrStatus1 gives the power status of the 1st slot in Event Master processor with frame id FrameId1f
  - 1. Power supply module is not present.
  - 2. Power supply module is present, but there is no power cable.
  - 3. Power supply module is present, and the cable is plugged in, but there is no DC current.
  - 4. Power supply module is present, and everything is OK.
- success: (0=success, anything else is an error)
Example:
- {"params":{}, "method":"powerStatus", "id":"1234", "jsonrpc":"2.0"}

listPresets

Definition:
- This queries the list of Presets on a particular destination or on the system.
Request:
- params: {"ScreenDest":x , "AuxDest":x},
  “x” can be:
  - -2: Do not include any destinations of this type. (Has priority over particular id, if passed as a parameter.)
  - -1: Do not care (All presets). (Has priority over particular id, if passed as a parameter.)
  - 0-999: want to see the presets with the destination this particular id in it or array of ids. Eg. "ScreenDestination":[{"id": 2}, {"id": 3}]
Response:
- response: Array of: [{"id": 0, "Name": "Preset3.00", "LockMode": 0, "presetSno":
  3.00}, {"id": 1, "Name": "Preset4.00", "LockMode": 0, "presetSno": 4.00}]
  - Response contains the array of presets. Above response contains id, name, lock mode preset serial number of the all the presets.
- success: (0=success, anything else is an error)
Example:
- {"params":{"ScreenDest": 0}, "method":"listPresets", "id":"1234", "jsonrpc":"2.0"}

listDestinationsForPreset

Definition:
- Lists the content of a Preset.
Request:
- params: {"id":x },
  “x” can be:
  - -1: List all Presets.
  - 0-999: list only that specific Preset.
Response:
- response: Array of: [{"id": 0, "Name": "Preset3.00", "LockMode": 0, "presetSno":
  3.00, "ScreenDest":[{"id": 0}, {"id": 3}]}]
  - Response contains the array of Presets.
- success: (0=success, anything else is an error)
Example:
- { "params":{"id": 0}, "method":"listDestinationsForPreset", "id":"1234",
  "jsonrpc":"2.0"}

savePreset

Definition:
- Creates a Preset on the Event Master processor.
Request:
- params: {"presetName": "NewPreset", "ScreenDestination":[{"id": 2}, {"id": 3}]}
  - “presetName”: Name of the Preset to save.
  - ScreenDestinations: ScreenDest id for the Preset to be created.
  - ScreenDestination: an optional parameters. If user didn’t provide it, Preset will be saved for selected destinations.
Response:
- response: null
- success: (0=success, anything else is an error)
Example:
- {"params": {"presetName": "NewPreset"}, "method":"savePreset", "id":"1234",
  "jsonrpc":"2.0"}
- {"params": {"presetName": "NewPreset", "ScreenDestination":
  {"id": 0}, "method":"savePreset", "id":"1234", "jsonrpc":"2.0"}
Key points regarding Preset, which are same for rename, activate, and delete:
- “id”: id of the preset.
- “presetSno”: preset serial number. User can provide floating point number if required. Eg. "presetSno": 1.01, "presetSno": 1.00, "presetSno": 1, "presetSno": 1.1, "presetSno": 1.10.
  Kindly note that 1.1 and 1.10 or 1.00 and 1 are same.
- “presetName”: Name of the preset.

renamePreset

Definition:
- Rename a Preset on the Event Master processor. User can rename Preset with id, Preset serial number, or Preset name.
- Send any one of the parameters to rename Preset.
Request params:
- params: {"id": x, "newPresetName": "NewPresetName"}
- params: {"presetSno": x.y, "newPresetName": "NewPresetName"}
- params: {"presetName": "OldPresetName", "newPresetName": "NewPresetName"}
  - “newPresetName”: New Preset name to set.
Response:
- response: null
- success: (0=success, anything else is an error)
Example:
- {"params": {"id": 0, "newPresetName": " newPresetName "},
  "method":"renamePreset", "id":"1234", "jsonrpc":"2.0"}
- {"params": {"presetName": "NewPreset", "newPresetName": "NewPresetName"},
  "method":"renamePreset", "id":"1234", "jsonrpc":"2.0"}
- {"params": {"presetSno": 1.00, "newPresetName": " newPresetName "},
  "method":"renamePreset", "id":"1234", "jsonrpc":"2.0"}

activatePreset

Definition:
- Recall a Preset on the Event Master processor. User can recall Preset with id, Preset serial number, or Preset name.
- Send any one of the parameters to recall Preset.
Request params:
- params: {"id": x, "type": x}
- params: {"presetSno": x.y, "type": x}
- params: {"presetName": "PresetName"}
  - “type”: 0 to recall in preview (default), 1 to recall in program.
    This is not a mandatory parameter but should be given when the user wants to recall a Preset in program.
Response:
- response: null
- success: (0=success, anything else is an error)
Example:
- {"params": {"id": 0, "type": 0}, "method":"activatePreset",
  "id":"1234", "jsonrpc":"2.0"} //Recall in preview with id 0.
- {"params": {"presetName": "abc" }, "method":"activatePreset",
  "id":"1234", "jsonrpc":"2.0"} //Recall in preview with preset name "abc".
- {"params": {"presetSno": 1.00, "type": 1}, "method":"activatePreset",
  "id":"1234", "jsonrpc":"2.0"} //Recall in program with presetSno 1.

recallNextPreset

Definition:
- Recall the next Preset on the Event Master processor.
  No parameter is required.
- Make sure that the user has at least recalled one Preset. Web app recalls the next Preset from the last Preset recalled.
Request:
- params: {}
Response:
- response: null
- success: (0=success, anything else is an error)
- An error is shown if there was no last recalled Preset or if there is no next Preset in the list.
Example:
- {"params": {}, "method":"recallNextPreset", "id":"1234", "jsonrpc":"2.0"}

deletePreset

Definition:
- Delete a Preset on the Event Master processor.
  User can delete Preset with id, Preset serial number, or Preset name.
- Send any one of the parameters to delete Preset.
Request:
- params: {"id": x}
- params: {"presetSno": x.y}
- params: {"presetName": "PresetName"}
Response:
- response: null
- success: (0=success, anything else is an error)
Example:
- {"params": {"id": 1}, "method":"deletePreset", "id":"1234", "jsonrpc":"2.0"}
- {"params": {"presetSno": 1.00}, "method":"deletePreset", "id":"1234", "jsonrpc":"2.0"}
- {"params": {"presetName": "Preset 5.00"}, "method":"deletePreset",
  "id":"1234", "jsonrpc":"2.0"}

listDestinations

Definition:
- This API lists all the destinations with properties such as layers, outputs, id, size, and name.
Request:
- params: {"type": x}
  - 0: Show all the destinations.
    0 is the default value for the type parameter.
  - 1: Only screen destinations.
Response:
- response: Array of : {"ScreenDestination":[{"id": 0, "Name": "Dest1", "HSize": 3840,
  "VSize": 1080, "Layers": 1,"DestOutMapColl":[{"id": 0"DestOutMap":[{"id": 0,
  "Name": "Out1", "HPos": 0, "VPos": 0, "HSize": 1920, "VSize":1080, "Freeze":
  0},{"id": 1, "Name": "Out2", "HPos": 1920, "VPos": 0, "HSize": 1920,
  "VSize":1080, "Freeze": 1}]}]}]}
- success: (0=success, anything else is an error)
Example:
- {"params": {"type": 0}, "method":"listDestinations", "id":"1234", "jsonrpc":"2.0"}

listSources

Definition:
- This API lists all the input sources with properties.
Request:
- params: {"type": x}
  - 0: Show all the input sources.
    0 is the default value for the type parameter.
Response:
- response: Array of : {"id": 0, "Name": "InSource1", "HSize": 3840, "VSize": 1080,
  "SrcType": 0, "InputCfgIndex": -1, "StillIndex": 0, "DestIndex": -1,
  "UserKeyIndex": -1, "Mode3D": 0, "Freeze": 1, "Capacity": 2,
  "InputCfgVideoStatus": 4}
- success: (0=success, anything else is an error)
Example:
- {"params": {"type": 0}, "method":"listSources", "id":"1234", "jsonrpc":"2.0"}

listContent

Definition:
- This API shows the content of a screen destination.
Request:
- params: {"id": x}
  - “id”: Screen destination index.
Response:
- response: {"jsonrpc":"2.0","result":{"success":0,"response":
  {"id":1,"Name":"PGM2","IsActive":1,"BGLyr":[{"id":0,"LastBGSourceIndex":
  -1,"BGShowMatte":1,"BGColor":{"id":0,"Red":0,"Green":0,"Blue":0}},{"id":
  1,"LastBGSourceIndex":-1,"BGShowMatte":1,"BGColor":{"id":0,"Red":0,
  "Green":0,"Blue":0}}],"Layers":[{"id":0,"Name":"LayerA","LastSrcIdx":4,
  "PvwMode":1,"PgmMode":0,"LinkLayerId":-1,"LinkDestId":-1,"Capacity":4,
  "PvwZOrder":0,"PgmZOrder":0,"Freeze":0,"ScalingMode":0,"Window":[{"HPos":
  0,"VPos":0,"HSize":1920,"VSize":1080},{"HPos":0,"VPos":0,"HSize":1920,
  "VSize":1080}],"Source":[{"HPos":0,"VPos":0,"HSize":1920,"VSize":1080},
  {"HPos":0,"VPos":0,"HSize":1920,"VSize":1080}],"Mask":[{"id":0,"Top":0,
  "Left":0,"Right":0,"Bottom":0},{"id":0,"Top":0,"Left":0,"Right":0,
  "Bottom":0}]},{"id":1,"Name":"LayerB","LastSrcIdx":5,"PvwMode":0,
  "PgmMode":1,"LinkLayerId":-1,"LinkDestId":-1,"Capacity":4,"PvwZOrder":0,
  "PgmZOrder":0,"Freeze":0,"ScalingMode":0,"Window":[{"HPos":0,"VPos":0,
  "HSize":1920,"VSize":1080},{"HPos":0,"VPos":0,"HSize":1920,"VSize"
  :1080}],"Source":[{"HPos":0,"VPos":0,"HSize":1920,"VSize":1080},{"HPos":
  0,"VPos":0,"HSize":1920,"VSize":1080}],"Mask":[{"id":0,"Top":0,"Left":
  0,"Right":0,"Bottom":0},{"id":0,"Top":0,"Left":0,"Right":0,"Bottom":
  0}]}],"Transition":[{"id":0,"TransTime":1,"TransPos":0,"ArmMode":1},
  {"id":1,"TransTime":1,"TransPos":0,"ArmMode":0}],"OutputCfg":[{"id":2,
  "Name":"HDMI2A","OutputAOI":[{"id":0,"TestPattern":[{"id":0,
  "TestPatternMode":0}]}]}]}},"id":"1234"}
  - id: index of screen destination.
  - Name: Name of ScreenDestination.
  - BGLyr: Background layer index, Last source index of background.
    “id”:0 affects the Background in Program. “id”:1 affects the Background in Preview.
  - BGShowMatte: This is if BG to be matte or not.
  - BGColor: This is background color.
  - Layers: Lists layers on screen destination with its properties.
  - Transition: This property of screen destination contains the transition time (from time to move from preview to program).
  - ScalingMode: 0 = all. 1 = center cut
- success: (0=success, anything else is an error)
Example:
- {"params": {"id": 0}, "method":"listContent", "id":"1234", "jsonrpc":"2.0"}

activateCue

Definition:
- This API provides the option to play/pause/stop a cue.
Request:
- params: {"id": 1, "type": x}, "method":"activateCue", "id":"1234", "jsonrpc":"2.0"}
  - id: Index of the cue
  - type: (Default is play). x" can be : 0 - Play. 0 is the default value for the type parameter. 1 - Pause, 2 - Stop
- params: {"cueName": "Cue1", "type": x}, "method":"activateCue", "id":"1234", "jsonrpc":"2.0"}
- params: {"cueSerialNo": 1.00, "type": x}, "method":"activateCue", "id":"1234", "jsonrpc":"2.0"}
Response:
- response: null
- success: (0=success, anything else is an error)
Example:
- {"params": {"id": 1}, "method":"activateCue", "id":"1234", "jsonrpc":"2.0"} //Play – no parame or type 0
- {"params": {"type": 1}, "method":"activateCue", "id":"1234", "jsonrpc":"2.0"} //Pause – type 1
- {"params": {"type": 2}, "method":"activateCue", "id":"1234", "jsonrpc":"2.0"} //Stop – type 2

activateDestGroup

Definition:
- Recall a DestGroup on the Event Master processor. User can recall DestGroup with id, DestGroup serial number, or DestGroup name.
- Send any one of the parameters to recall DestGroup.
Request:
- params: {"id": x}
- params: {"destGrpSno": x.y}
- params: {"destGrName": "GroupName"}
Response:
- response: null
- success: (0=success, anything else is an error)
Example:
- {"params": {"id": 0}, "method":"activateDestGroup", "id":"1234", "jsonrpc":"2.0"}
- {"params": {"destGrpName": "abc" }, "method":"activateDestGroup", "id":"1234", "jsonrpc":"2.0"}
- {"params": {"destGrpSno": 1.00}, "method":"activateDestGroup", "id":"1234", "jsonrpc":"2.0"}

listCues

Definition:
- This API lists all the cues.
Request:
- params: {}, "method":"listCues", "id":"1234", "jsonrpc":"2.0"}
Response:
- response: Array of cue objects.
- success: (0=success, anything else is an error)
Example:
- {"params": {}, "method":"listCues", "id":"1234", "jsonrpc":"2.0"}

changeContent

Definition:
- This API changes the content of a screen destination by putting background and layers in it.
Request:
- params: {"id":0, "Layers": [{"id":0,"ScalingMode":0]}
  - id: Screen destination index.
  - scalingMode: 0 = all. 1 = center cut
Response:
- response: null
- success: (0=success, anything else is an error)
Example:
- {"params":{"id":0,"Layers": [{"id":1, ,"ScalingMode":0, "LastSrcIdx":10,
  "Source":{"HPos":0,"VPos":0,"HSize":1122,"VSize":1122},"PvwMode":1,
  "PgmMode":0,"Freeze":0}]}, "method":"changeContent", "id":"1234",
  "jsonrpc":"2.0"}
- {"params":{"id":0, "TestPattern" :5 }, "method":"changeContent", "id":"1234", "jsonrpc":"2.0"}

listStill

Definition:
- This API lists all the stills with properties such as id, Name, H/V size, LockMode, StillState, PngState, File size.
Request:
- params: {}
Response:
- response: Array of : [{"id":0,"Name":"StillStore1","LockMode":0,"HSize":
  {"Min":0,"Max":99999,"$t":1920},"VSize":{"Min":0, "Max":99999,"$t":1080},
  "StillState":{"Min":0,"Max":4,"$t":3},"PngState":{"Min":0,"Max":2,"$t":
  0},"FileSize":{"Min":0,"Max":100000,"$t":9331.2}}]
  - id: Index of still store.
  - Name: Name of still store.
  - LockMode: For future use. Always set to 0.
  - H/V size: Horizontal and vertical size, Min, max and current value. It shows the current value.
  - StillState: This tells user if the still is currently being captured or not, or if it is getting deleted.
  - PngState: The “PNG” for stills are for the thumbnails we capture for the stills.
  - FileSize: Size of the file created in KBs.
- success: (0=success, anything else is an error)
Example:
- {"params": {}, "method":"listStill", "id":"1234", "jsonrpc":"2.0"}

deleteStill

Definition:
- This API deletes a still.
Request:
- params: {"id": x}
  - id: Index of still.
Response:
- response: null
- success: (0=success, anything else is an error)
Example:
- {"params":{"id": 0}, "method":"deleteStill", "id":"1234", "jsonrpc":"2.0"}

takeStill

Definition:
- This API creates/overwrites a still.
Request:
- params: { "type": x, "id": y, "file": z}
  - type: 0 for input source, 1 for BG source.
  - Id: Index of the source. If the source id of the destination is provided, no still is created and an error is shown.
  - File: still file id. If you pass “file” : 5, this creates StillStore6.
Response:
- response: null
- success: (0=success, anything else is an error)
Example:
- {"params":{"type":0 , "id": 1, "file": 5}, "method":"takeStill", "id":"1234",
  "jsonrpc":"2.0"}
  - This creates a still from input source id 1 as StillStore6.

getFrameSettings

Definition:
- This API shows system information, including all the frames information.
Request:
- params: {}
Response:
- {"System":{"id":0,"Name":"System1","FrameCollection":{"id":0,"Frame":
  {"id":"00:0c:29:0e:86:d4","Name":"E2","Contact":"","Version":"4.2.30738",
  "OSVersion":"NA","FrameType":0,"FrameTypeName":"E2","Enet":{"DhcpMode":0,
  "DhcpModeName":"Static","IP":"10.98.0.165","StaticIP":"192.168.000.175",
  "MacAddress":"00:0c:29:0e:86:d4","StaticMask":"255.255.255.000",
  "StaticGateway":"192.168.000.001"},"SysCard":{"SlotState":2,
  "CardStatusID":2,"CardStatusLabel":"Ready","CardTypeID":80,
  "CardTypeLabel":"System","CardID":0},"Slot":[{"Card":{"CardStatusID":2,
  "CardStatusLabel":"Ready","CardTypeID":70,"CardTypeLabel":"Expansion",
  "CardID":"thisissometextforid0"}},{"Card":{"CardStatusID":2,"CardStatusLabel":
  "Ready","CardTypeID":70,"CardTypeLabel":"Expansion","CardID":
  "thisissometextforid1"}},{"Card":{"CardStatusID":0,"CardStatusLabel":
  "Not Installed","CardTypeID":255,"CardTypeLabel":"Unknown","CardID":
  "Undefined"}},{"Card":{"CardStatusID":2,"CardStatusLabel":"Ready",
  "CardTypeID":1,"CardTypeLabel":"SDI Input","CardID":"thisissometextforid211"}},
  {"Card":{"CardStatusID":2,"CardStatusLabel":"Ready","CardTypeID":3,"CardID":
  "thisissometextforid2"}},{"Card":{"CardStatusID":2,"CardStatusLabel":"Ready",
  "CardTypeID":0,"CardTypeLabel":"DVI Input","CardID":"thisissometextforid4"}},
  {"Card":{"CardStatusID":2,"CardStatusLabel":"Ready","CardTypeID":2,
  "CardTypeLabel":"HDMI/DP Input","CardID":"thisissometextforid5"}},
  {"Card":{"CardStatusID":2,"CardStatusLabel":"Ready","CardTypeID":2,
  "CardTypeLabel":"HDMI/DP Input","CardID":"thisissometextforid7"}},
  {"Card":{"CardStatusID":2,"CardStatusLabel":"Ready","CardTypeID":2,
  "CardTypeLabel":"HDMI/DP Input","CardID":"thisissometextforid8"}},
  {"Card":{"CardStatusID":2,"CardStatusLabel":"Ready","CardTypeID":2,
  "CardTypeLabel":"HDMI/DP Input","CardID":"thisissometextforid9"}},
  {"Card":{"CardStatusID":2,"CardStatusLabel":"Ready","CardTypeID":22,
  "CardTypeLabel":"HDMI Output","CardID":"CardID3"}},{"Card":{"CardStatusID":2,
  "CardStatusLabel":"Ready","CardTypeID":22,"CardTypeLabel":"HDMI Output",
  "CardID":"CardID4"}},{"Card":{"CardStatusID":2,"CardStatusLabel":"Ready",
  "CardTypeID":21,"CardTypeLabel":"SDI Output","CardID":"CardID415"}},
  {"Card":{"CardStatusID":2,"CardStatusLabel":"Ready","CardTypeID":40,
  "CardTypeLabel":"MVR","CardID":"CardID15"}},{"Card":{"CardStatusID":2,
  "CardStatusLabel":"Ready","CardTypeID":50,"CardTypeLabel":"VPU Scaler",
  "CardID":"thisissometextforid501"}},{"Card":{"CardStatusID":2,
  "CardStatusLabel":"Ready","CardTypeID":50,"CardTypeLabel":"VPU Scaler",
  "CardID":"thisissometextforid502"}},{"Card":{"CardStatusID":2,
  "CardStatusLabel":"Ready","CardTypeID":50,"CardTypeLabel":"VPU Scaler",
  "CardID":"thisissometextforid503"}},{"Card":{"CardStatusID":2,
  "CardStatusLabel":"Ready","CardTypeID":50,"CardTypeLabel":"VPU Scaler",
  "CardID":"thisissometextforid504"}},{"Card":{"CardStatusID":0,
  "CardStatusLabel":"Not Installed","CardTypeID":255,"CardTypeLabel":
  "Unknown","CardID":"Undefined"}},{"Card":{"CardStatusID":2,"CardStatusLabel":
  "Ready","CardTypeID":50,"CardTypeLabel":"VPU Scaler","CardID":
  "thisissometextforid505"}},{"Card":{"CardStatusID":2,"CardStatusLabel":"Ready",
  "CardTypeID":50,"CardTypeLabel":"VPU Scaler","CardID":
  "thisissometextforid506"}},{"Card":{"CardStatusID":2,"CardStatusLabel":"Ready",
  "CardTypeID":50,"CardTypeLabel":"VPU Scaler","CardID":
  "thisissometextforid507"}},{"Card":{"CardStatusID":2,"CardStatusLabel":"Ready",
  "CardTypeID":50,"CardTypeLabel":"VPU Scaler","CardID":
  "thisissometextforid508"}}]}}}}}
  - System: System name and index.
  - FrameCollection: Collection of frames in a system containing frame information.
  - Frame: Contains frame information.
  - Id: Mac Id of the frame.
  - Name: Name of the frame.
  - Contact: Contact information.
  - Version: Current version of the software installed on the frame.
  - OSVersion: Current OS version installed on the frame.
  - FrameType: 0 = E2, 1 = S3, 2 = Ex.
  - FrameTypeName: Type of the frame: E2/S3/Ex.
  - Enet: Ethernet settings.
  - SysCard: System card information.
  - Slot: List of Input/Output/Expansion card information.
- success: (0=success, anything else is an error)
Example:
- {"params":{}, "method":"getFrameSettings", "id":"1234", "jsonrpc":"2.0"}

Subscription and Un-Subscription

When a subscription is done from a JSON-based application, a notification is sent to the ip port where the application is running when there is change for which the user has subscribed.

Actual notification is sent asynchronously as an HTTP Post, with the following structure: {result: {method:

"notification",notificationType: "ScreenDestChanged",change: { add: [2],

remove: [], update: [0, 1, 2] }}}.

The change field contains the XmlId(s) of the screens that were added/removed or updated.

Note: All subscriptions are lost once the Event Master processor is restarted, and they must be subscribed again if required.

subscribe

Definition:
- User can use this API to subscribe to change events in the Event Master processor.
- Once subscribed, the API sends a notification in the form of an HTTP Post to the Url: http://hostname:port/.
Request:
- params: {"hostname": hostname, "port": port, "notification" : notificationType[]}
  - hostname: Hostname or IP Address to which the notifications are sent.
  - port: TCP port to which the notification are posted.
  - notificationTypes: an array of notifications to which a user wants to subscribe.
  - - ScreenDestChanged
  - - FrameChanged
  - - InputCfgChanged
  - - SourceChanged
  - - BGSourceChanged
  - - PresetChanged
  - - StillChanged
  - - OutputCfgChanged
Response:
- response: {"method": "subscribe"}
- success: (0=success, anything else is an error)
Example:
- {"params": {"hostname" : "192.168.247.131", "port": "3000", "notification" :
  ["ScreenDestChanged"]}, "method":"subscribe", "id":"1234", "jsonrpc":"2.0"}

unsubscribe

Definition:
- User can use this API to remove the subscription for the given hostname, port, and notificationType.
Request:
- params: {"hostname": hostname, "port": port, "notification" : notificationType[]}
  - hostname: Hostname or IP Address from which the subscription is to be removed.
  - port: TCP port.
  - notificationTypes: an array of notifications to which a user wants to subscribe.
  - - ScreenDestChanged
  - - FrameChanged
  - - InputCfgChanged
  - - SourceChanged
  - - BGSourceChanged
  - - PresetChanged
  - - StillChanged
  - - OutputCfgChanged
Response:
- response: {"method": "unsubscribe"}
- success: (0=success, anything else is an error)
Example:
- {"params": {"hostname" : "192.168.247.131", "port": "3000", "notification" :
  ["ScreenDestChanged"]}, "method":"unsubscribe", "id":"1234", "jsonrpc":"2.0"}
