2.1 Main unit

Component locations

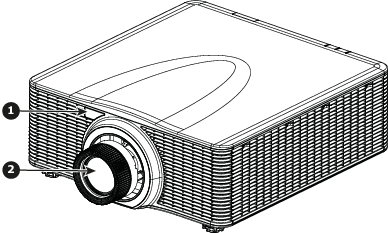

Image 2–1
1
Remote receiver (Front)
2
Projection lens

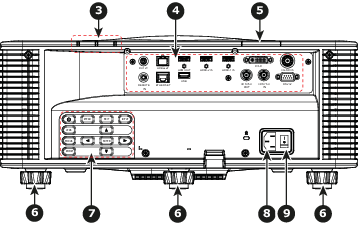

Image 2–2
3
LED Status Indicator
4
Input/Output (I/O) Panel
5
Remote receiver (Top)
6
Adjustable feet
7
Control panel
8
Power socket (AC100-240V, 50-60Hz)
9
Power switch

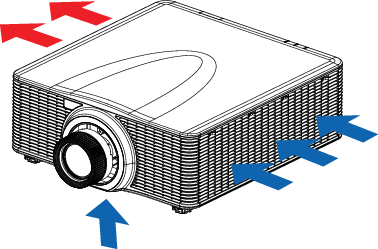

Airflow
Image 2–3
